CNLINKO LP-20 Conector impermeable de 12 pines, conector circular IP68, conector de aviación de conexión rápida, conector de soldadura de carcasa de plástico PBT, conector macho de la industria marina (12 PIN)
- Marca: CNLINKO
- Código de Producto: B0CYYYQXRZ

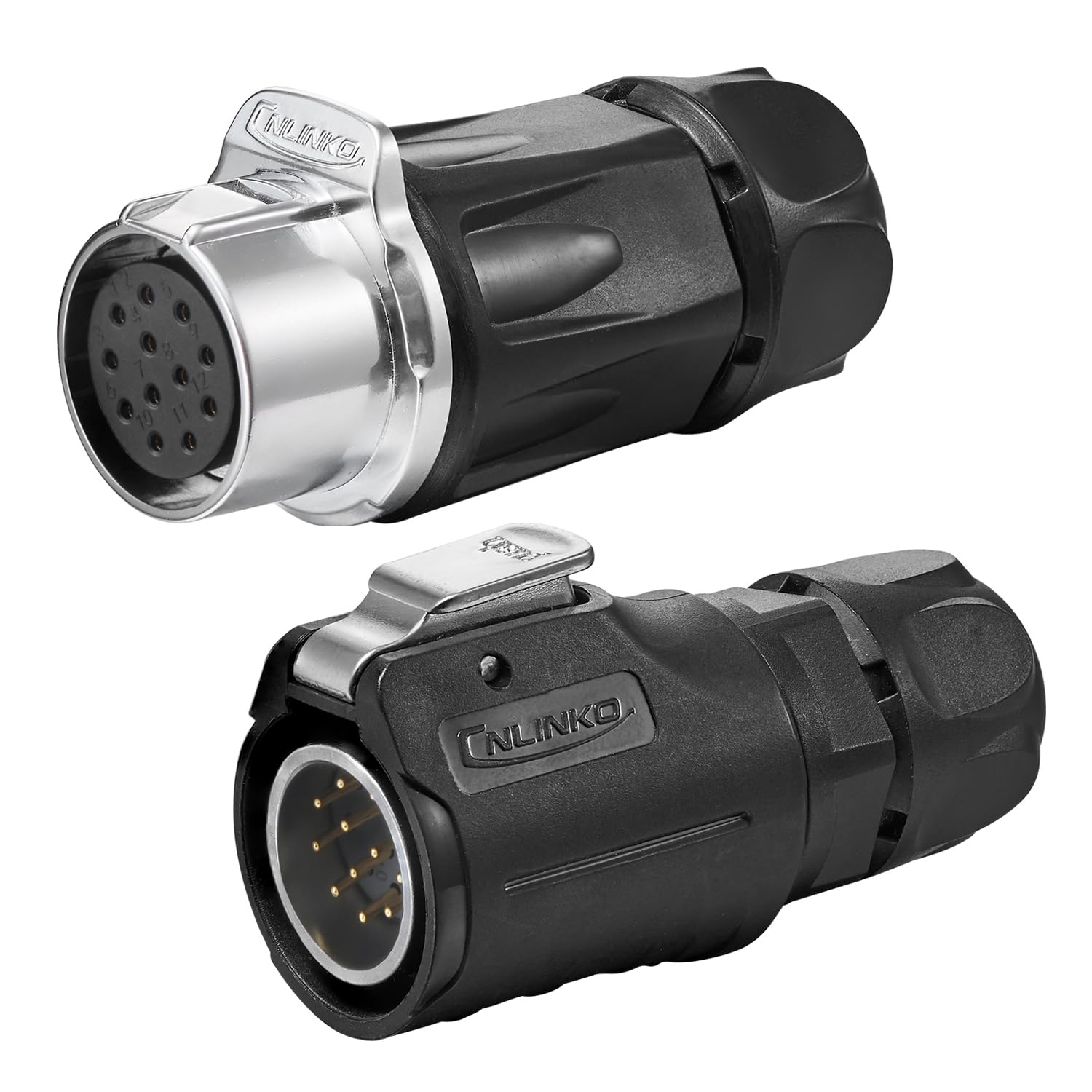

-LP20 12 Pin Connector: This set includes the M20 male plug and inline female plug. The intuitive plug/unplug mechanism of this connector set ensures a hassle-free experience while maintaining a secure connection. Protection Level: IP68(Mated); Assembly Style:Soldering.

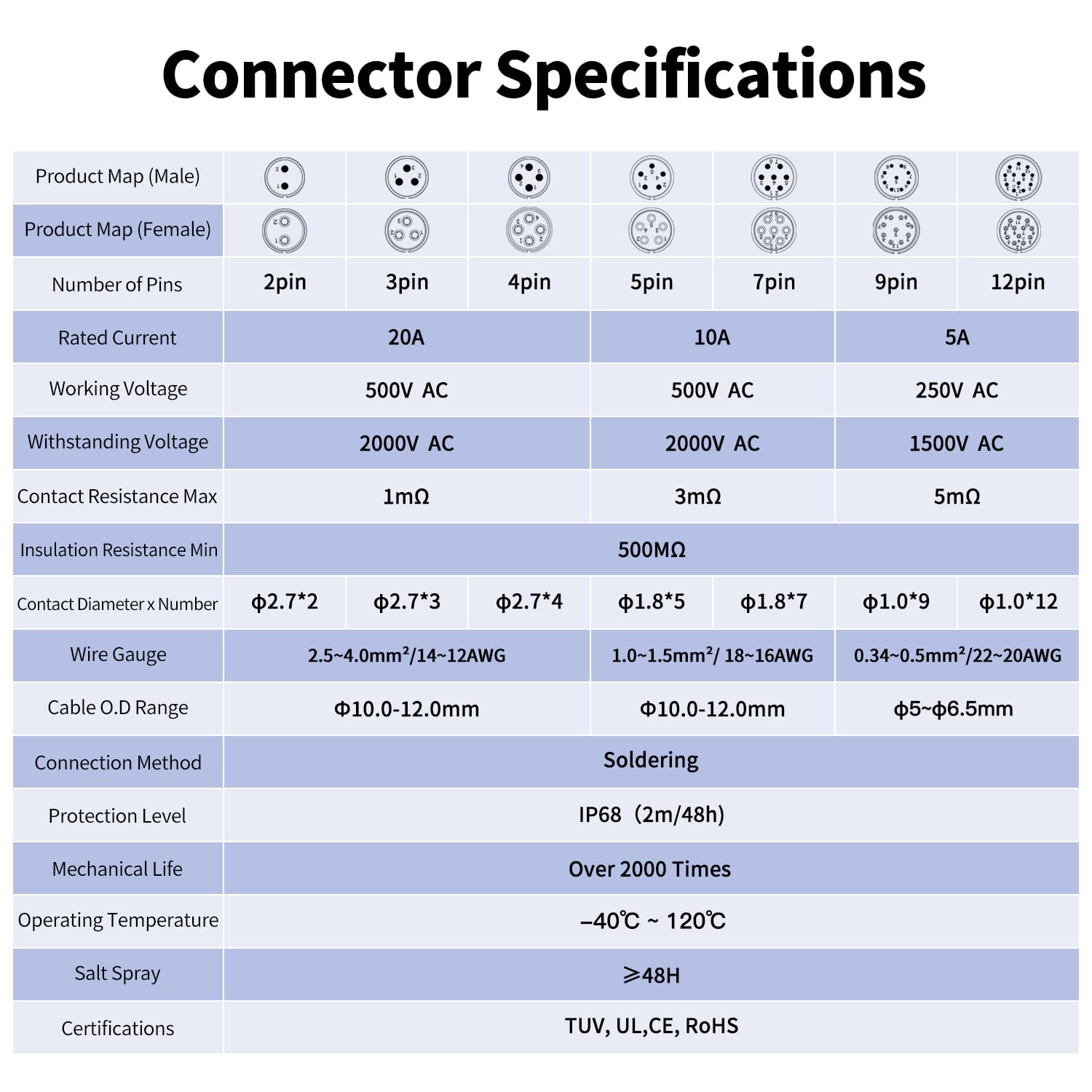

-Standard Specifications: Capable of supporting 0.34-0.5mm²/22-20AWG cable with a diameter of Φ5.0-Φ6.5mm. Contact Diameter × Number: Φ1.0x12. It handles 5A rated current, rated voltage 250V AC, withstands voltage 1500V AC. Contact resistance is ≤5.0mΩ, insulation resistance is >500MΩ.The connector is designed for over 2000 cycles at temperatures ranging from -40°C to 120°C. Note: Avoid charging during insertion.
-Robust Protection: With an IP68 mated protection level, this set offers robust shielding against dust, moisture, and other environmental factors when the connectors are engaged. This means that even in harsh industrial settings or outdoor installations, your connections remain intact, reliable, and free from potential disruptions.

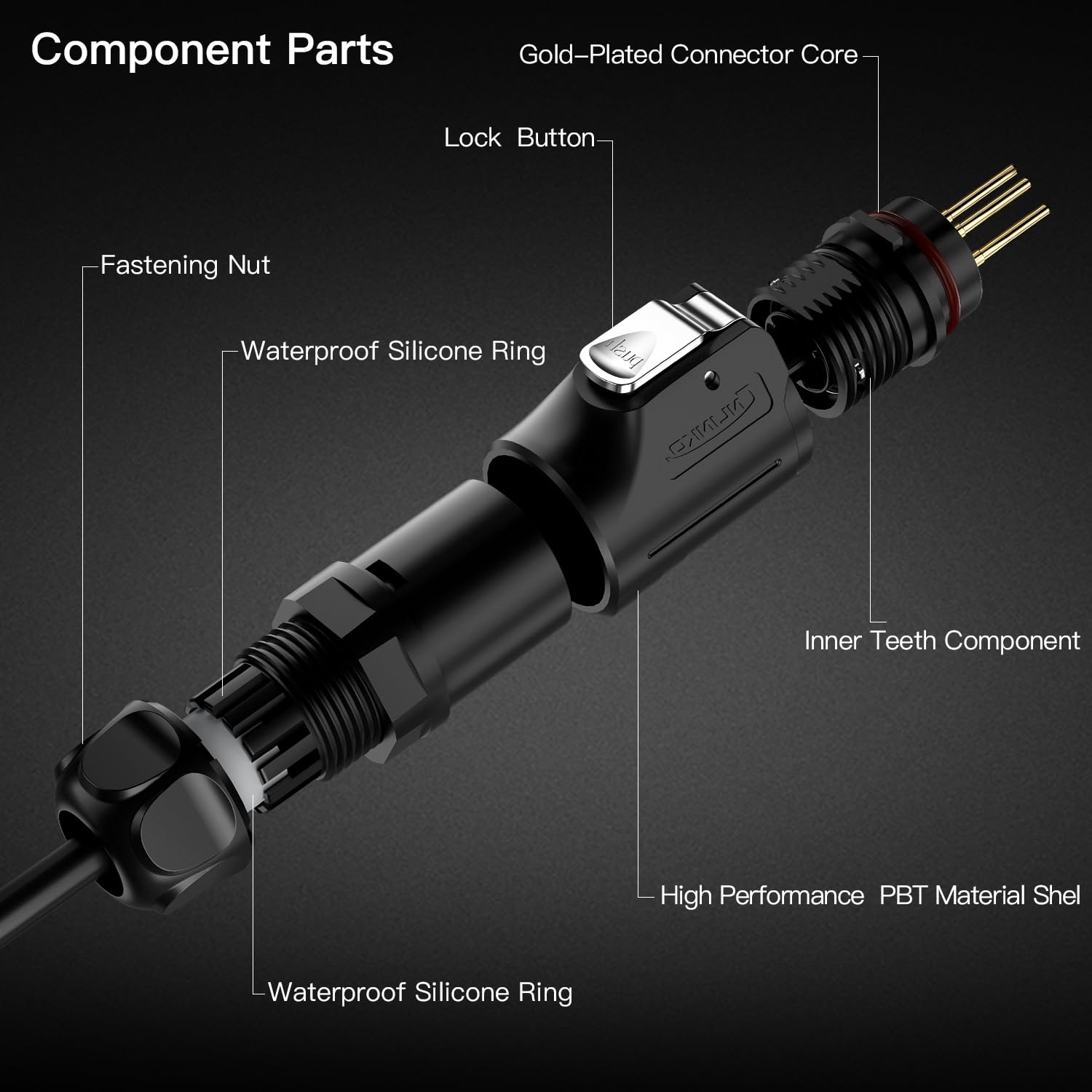

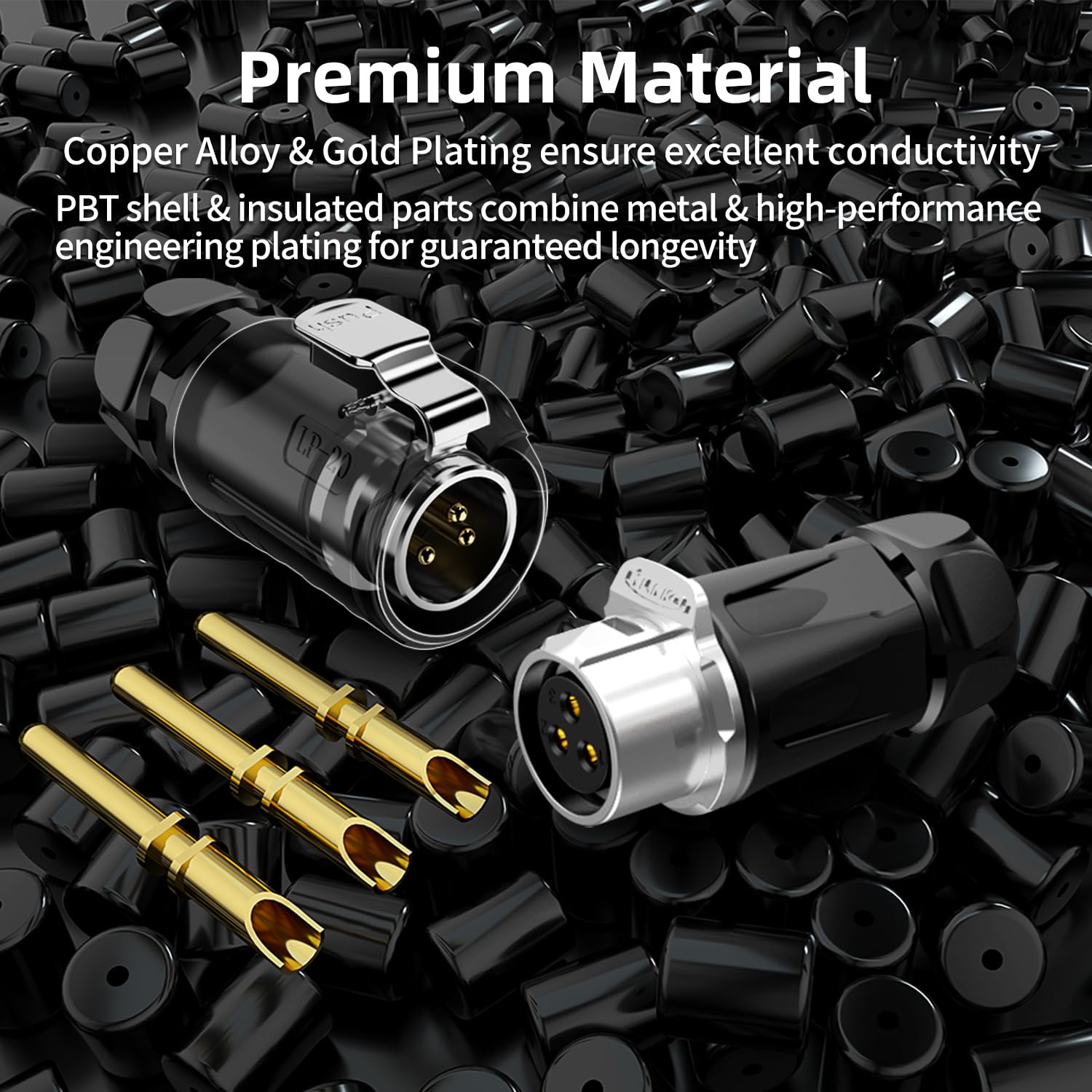

-Premium Material: the aviation connector's PBT shell and insulated parts combine metal and high-performance engineering plating for guaranteed longevity. Copper Alloy and Gold Plating in the contact points ensure excellent conductivity. An additional layer of protection is provided by Silica Gel sealing.
-Versatile Applications: The LP20 connectors excels at high-current and signal handling, making it ideal for applications like solar photovoltaics, automation equipment, electronic devices, machinery, instrumentation, ships, vehicle equipment, lighting, cleaning equipment, and LED displays.
