Forward DT08125A Tornillo de banco de 5 pulgadas para trabajo pesado, base giratoria de 360 grados y cabezal con yunque (5 ")
- Código de Producto: B07G58RDHV
Product Description
Forward - Since 1950
Forward has been building tools for almost 70 years.
Customer First, Our Philosophy. Our passion is making clamping tools that last a lifetime. If you are looking for a bench vise, we've got you covered.
Forward DT08125A 5 Inch Heavy Duty Rotating Bench Vise
Multi-Jaw Vise for Home & Industrial Use
Forward 5 inch rotating bench vise is the ideal industry heavy duty vise. It can be used for home craftsman, in the workshop, and even can be outdoor used. It's completely closed for preventing water, dirt & rust. If the vise can be normally operated, it will be lifetime using.

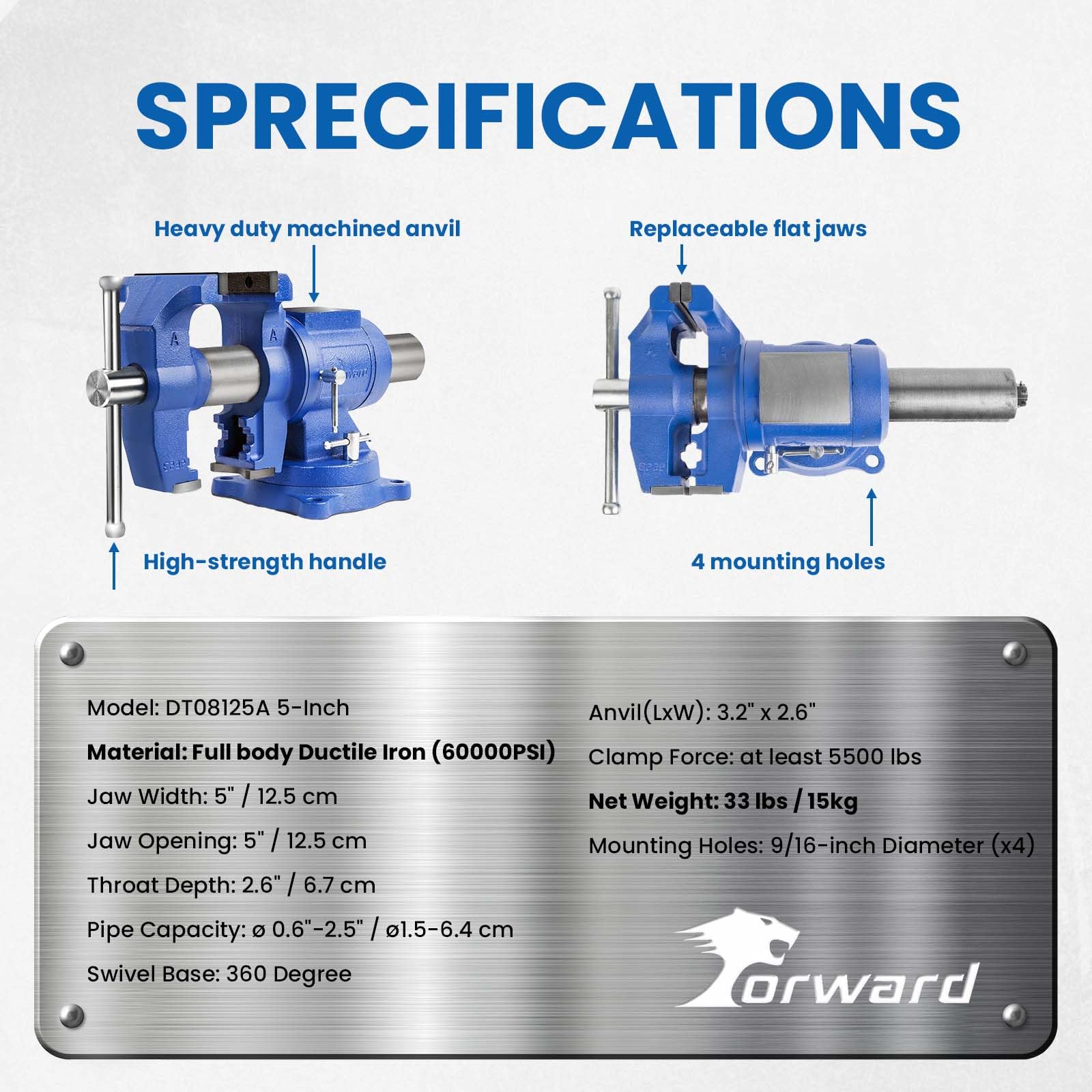

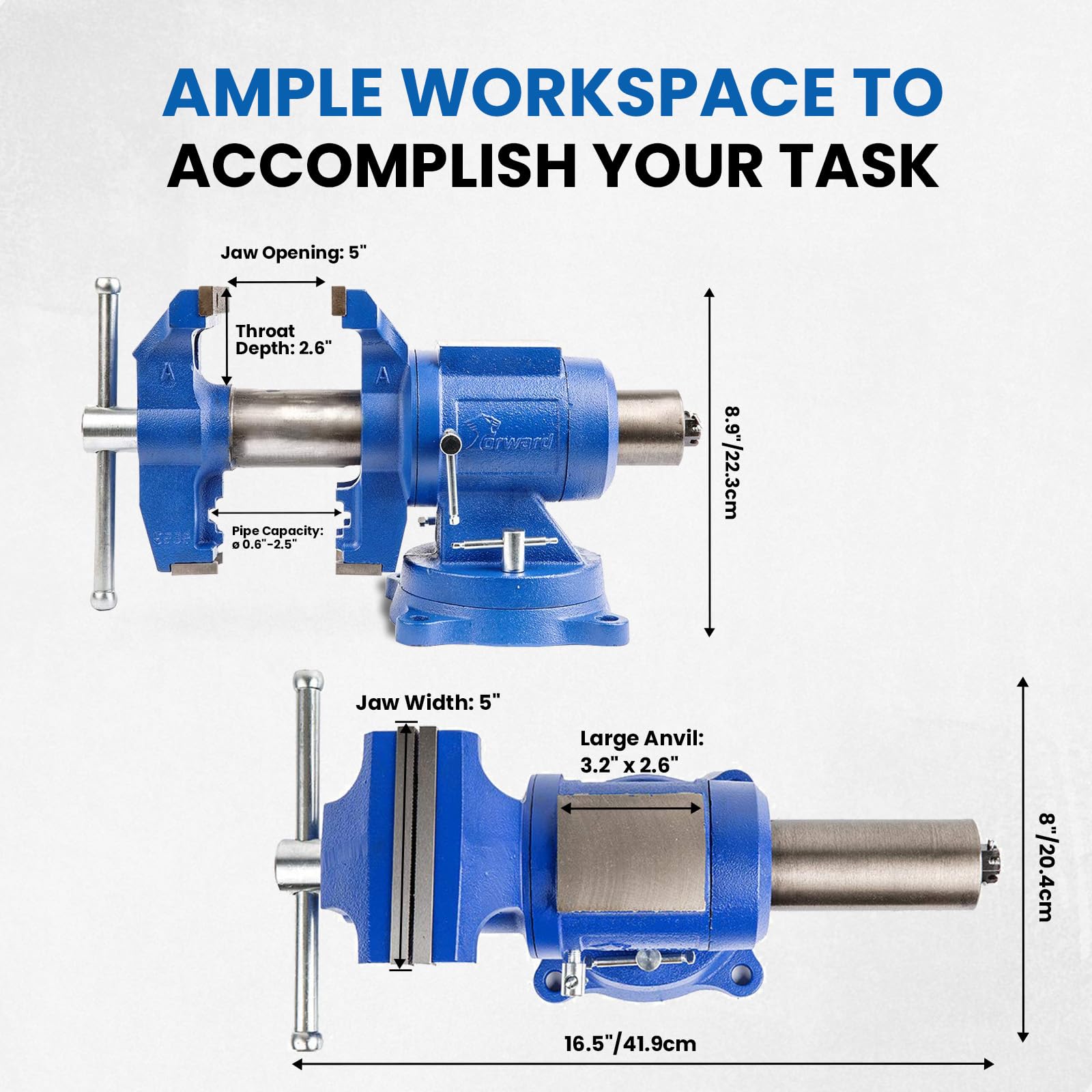

- Jaw width: 5 inches (12.5cm)
- Jaw Opening: 5 inches (12.5cm)
- Throat Depth: 2.6 inches (6.7cm)
- A large anvil work surface is located
- PSI 60,000 ductile iron
|
|
|
|
|---|---|---|

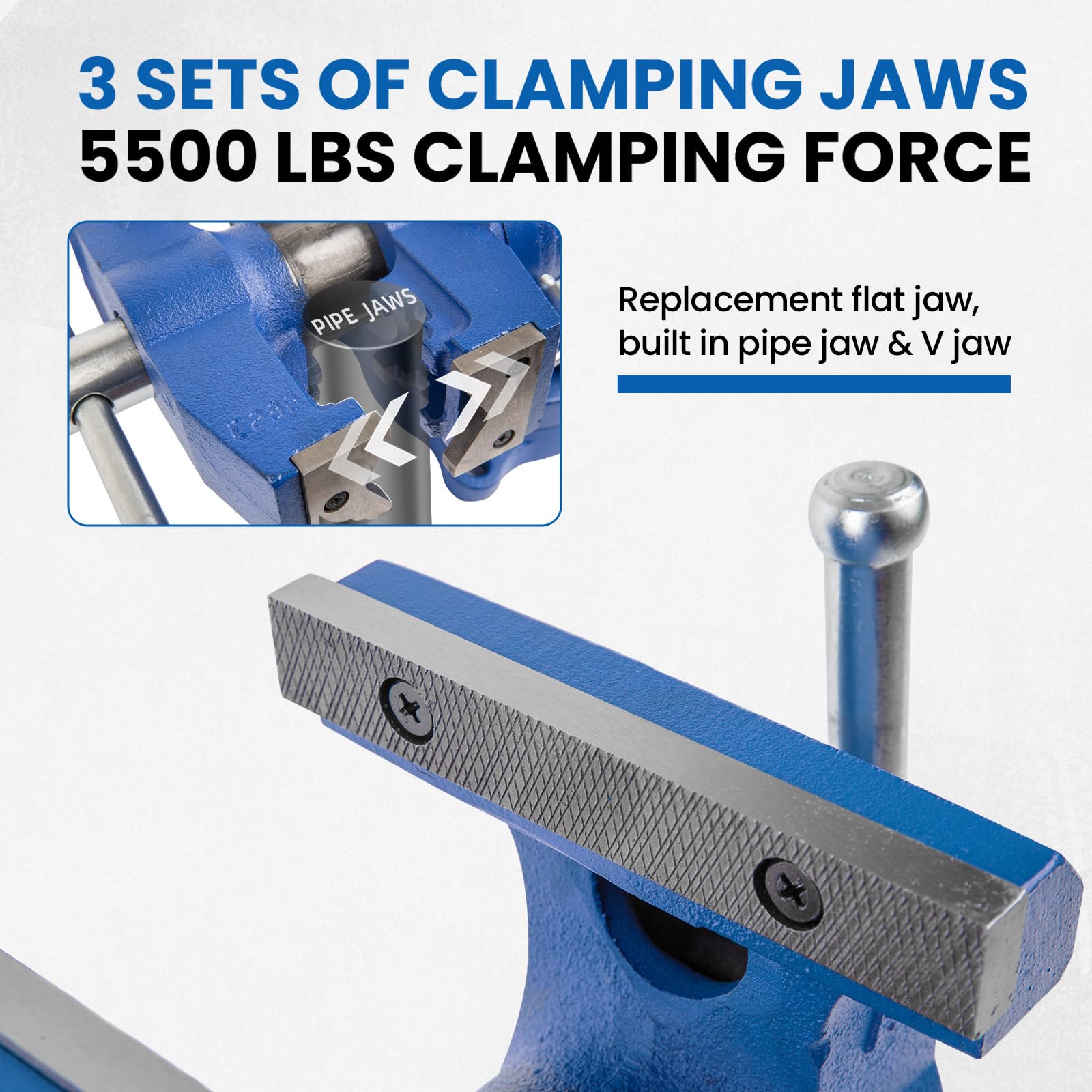

Powerful Jaws for Gripping PartsForward bench vise features three sets of jaws for gripping parts: Machinist Jaws, built in Pipe Jaws and V-Jaws. Replaceable jaws with microgroove tooth space are made from high strength steel for superior grip. |
Self Align Pipe JawsForward bench vise offers Self Align Pipe Jaws. These jaws adjust well to the work pieces to provide powerful clamping pressure while reducing marring. |
Bigger AnvilThe bench vise painted with durable grey powder coat can be rotated up to 360-Degree on its base for work positioning. 3.2 X 2.6 inch bigger anvil brings more operation options & space. |
Forward Multi-purpose Bench Vise - 360 Degrees
- The head of the vise can be rotated by 360 degrees for extra versatility.
- The base of the vise can also rotate 360 degrees, allowing for optimal work placement.

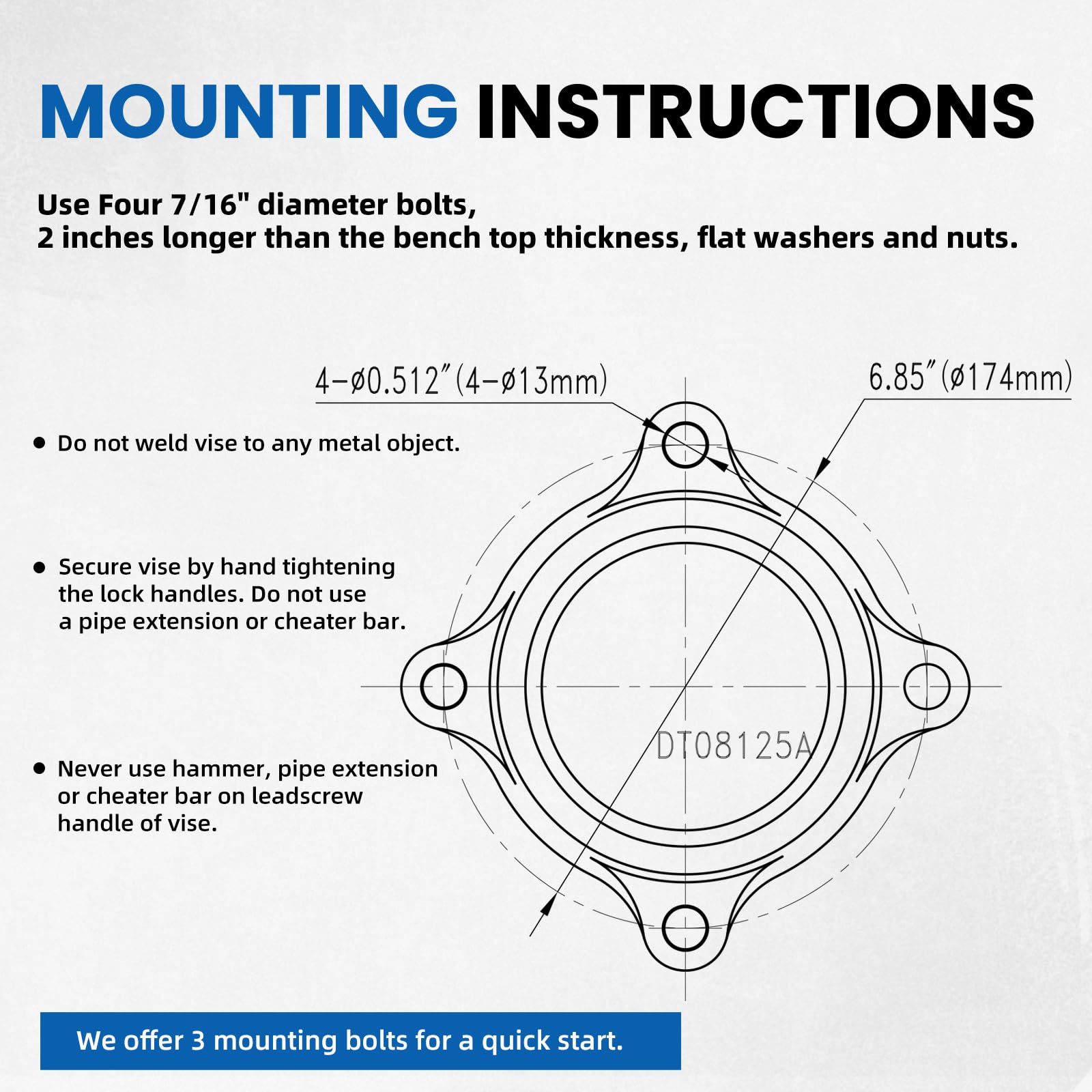

- The vise has four mounting holes to securely attach the vise to a workbench.
Mounting vise on the workbench, then do the work of grinding, cutting, and etc. Tapping work can also be done on the anvil of bench vise. It's of great convenience for industry and daily work.
|
|
|
|
|
|
|---|---|---|---|---|---|
| 4.5 INCH | 6.5 INCH | 5.5 INCH | 6 INCH | 5 INCH | |
| Construction | Ductile Iron | Ductile Iron | Cast Iron | Cast Iron | Ductile Iron |
| Swivel Base | 360 Degree | 270 Degree | 360 Degree | 120 Degree | 360 Degree |
| Weight | 38.5 lbs | 36.5 lbs | 48.4 lbs | 29.7 lbs | 33LB |
| Anvil Size | 2.7 X 2.9 Inch | 3.1 X 2.9 Inch | 3.5 X 3.7 Inch | 3.5 X 3.5 Inch | 3.2 X 2.6in |
| Jaw Width | 4.5'' | 6.5'' | 5.5'' | 6'' | 5" |
| Jaw Opening | 4.5'' | 6'' | 5"-8" | 5'' | 5" |
| Throat Depth | 3.5'' | 3.8'' | 3.8'' | 2.7'' | 2.6'' |
| Pipe Jaw | ✓ | ✓ | ✓ | X | ✓ |
| Mounting Holes | 9/16-inch Diameter (x4) | 7/16-inch Diameter (x4) | 9/16-inch Diameter (x4) | 1/2-inch Diameter (x3) | 9/16-inch Diameter (x4) |
|
|
|
|
|
|---|---|---|---|---|
| HY-30404-4In | HY-30505-5In | HY-30606-6In | HY-30808-8In | |
| Jaw Opening | 4" | 5" | 6" | 8" |
| Throat Depth | 2 3/8" | 2 3/4" | 3 3/8" | 3 1/2" |
| Swivel Base | 360 Degree | 360 Degree | 360 Degree | 360 Degree |
| Anvil | 2.5 X 2IN | 2.9 X 2.4IN | 3.4 X 2.8IN | 3.7 X 3.7IN |
| Construction | Ductile Iron | Ductile Iron | Ductile Iron | Ductile Iron |
| Weight | 15.5LB | 26.4LB | 33.9LB | 55.9LB |
| Pipe Jaw | Diameter 1/2" - 1 1/2" | Diameter 3/4" - 2" | Diameter 3/4" - 2 1/2" | Diameter 1" - 2 3/4" |
| Mounting Holes | 1/2-inch Diameter (x3) | 1/2-inch Diameter (x3) | 5/8-inch Diameter (x3) | 5/8-inch Diameter (x3) |
