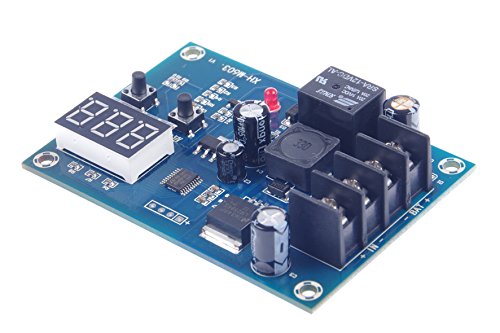

Tablero de control de carga de batería NOYITO 12V 24V (12-24V MAX30V) Interruptor de control de carga de batería Apagado automático seguro y ahorro de energía

- Make sure this fitsby entering your model number. - This product is suitable for 12-24V MAX30V battery charging control, can be free to set the start charging voltage and stop charging voltage! - Suitable for use in household chargers, solar energy, wind turbines. - Input voltage: DC12-24V (MAX 30V). The maximum current can be controlled by 20A. (If the board is working for a long time, it is recommended not to exceed 15A) - Display accuracy: 0.1V, control accuracy: 0.1V, voltage error: 0.1V. - One year warrantyWiring diagram, How it works, Set description, please see the picture. Product Name: Battery Charge Control Module; Input voltage: DC12-24V (MAX 30V);The maximum current can be controlled by 20A. (If the board is working for a long time, it is recommended not to exceed 15A) Display accuracy: 0.1V; Control accuracy: 0.1V; Voltage error: 0.1V; Output type: direct output; Scope: 12-24V of various types of batteries. Net weight: 40g. Product size: 81 * 54 * 18mm / 3.19 * 2.13 * 0.71in (L * W * H). Suitable for use in household chargers, solar energy, wind turbines. Instructions: In the set voltage value state, the start button to play the role of up, stop the button to play down the role. Set the starting voltage: Support display voltage state, press the start voltage button once to show the start charging voltage. Long press the start button for 3 seconds, digital flashing, through the start and stop button to set the start charge voltage value. To set the stop voltage: In the normal display voltage state, press the stop voltage button once to display the stop charging voltage. Long press the stop button for 3 seconds. Press the stop button for 3 seconds, digital flashing, through the start and stop button to set the stop charge voltage value. Reset: Power state at the same time press and hold the start and stop button, display 888, that is, restore the factory settings. Package Included: 1*12V 24V Battery Charging Control Board
