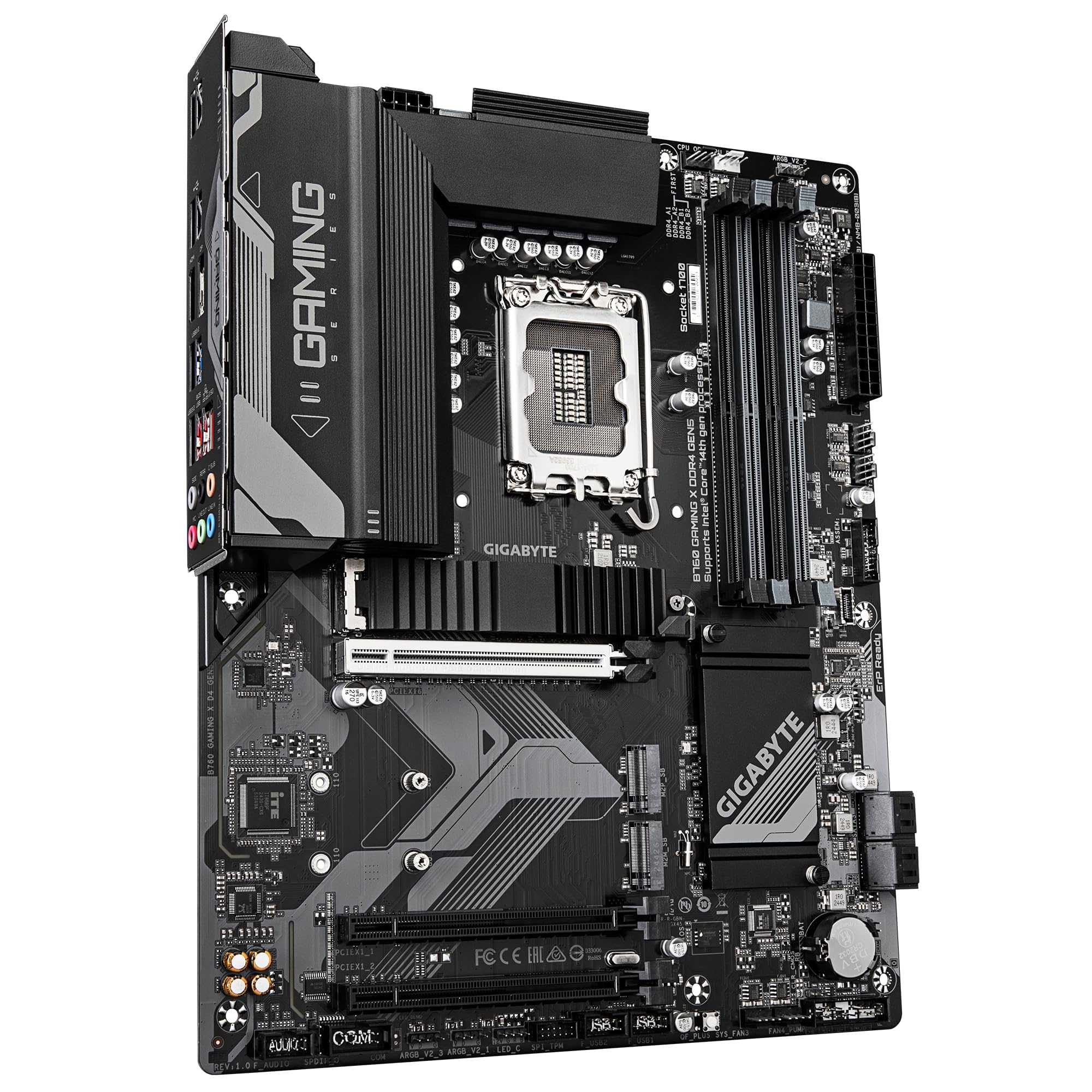

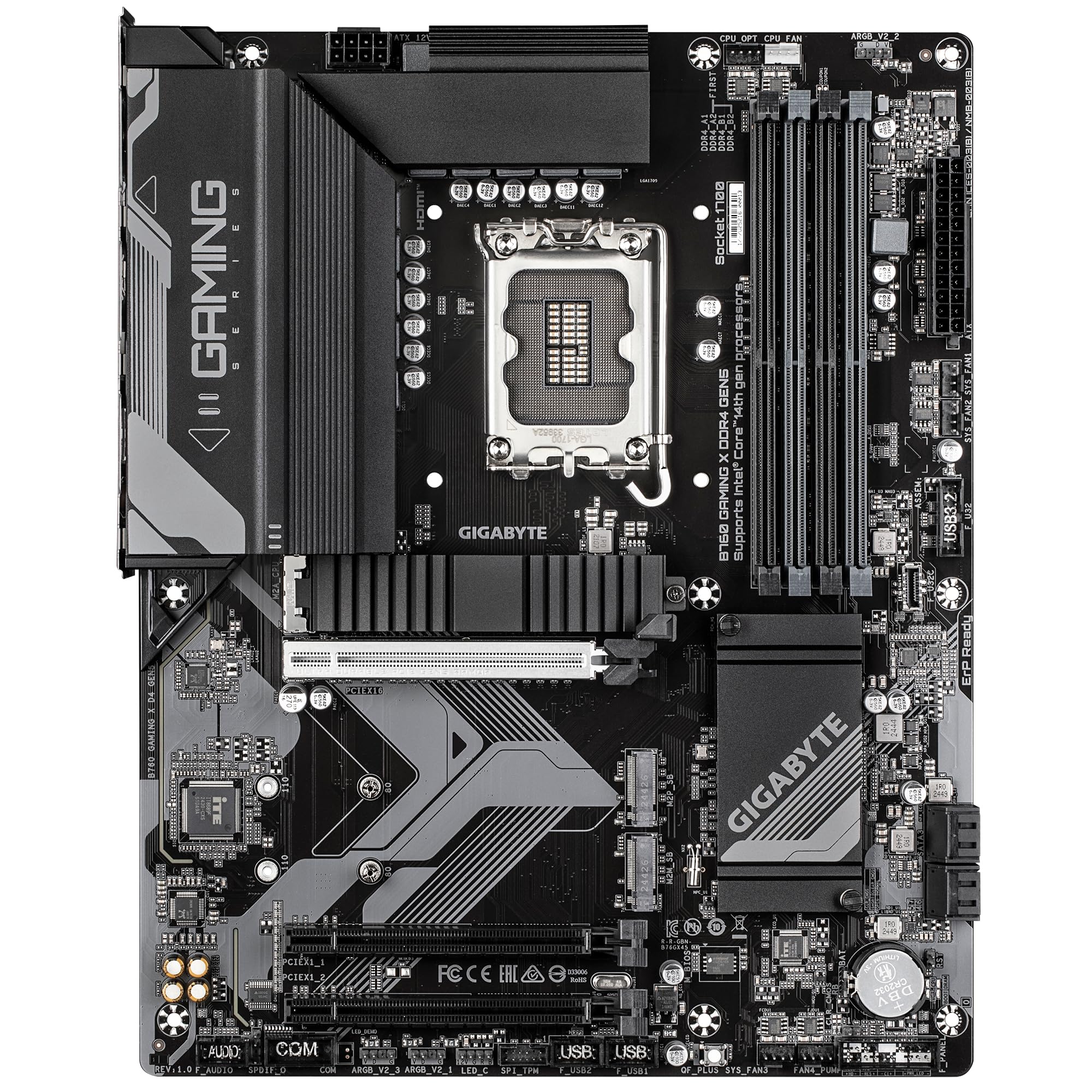

Placa base GIGABYTE B760 GAMING X DDR4 GEN5 ATX MB6761
- Marca: Gigabyte
- Código de Producto: B0FBLS93BQ
-MB6761 Japanese Authorized Dealer Product
-Equipped with PCIe 5.0 x16 slot, compatible with the latest graphics cards and expansion cards. Provides high bandwidth to ensure system expansion
-Equipped with cooling mechanisms such as VRM Thermal Armor Advanced and M.2 Thermal Guard. Maintains stable operation even under heavy loads and improves system reliability
-Supports up to 128GB of DDR4 memory and allows for easy overclocking setup using the XMP profile
-Equipped with three PCIe 4.0 x4 M.2 slots and four SATA3 ports. Flexible combination of high-speed NVMe SSD and traditional SATA devices

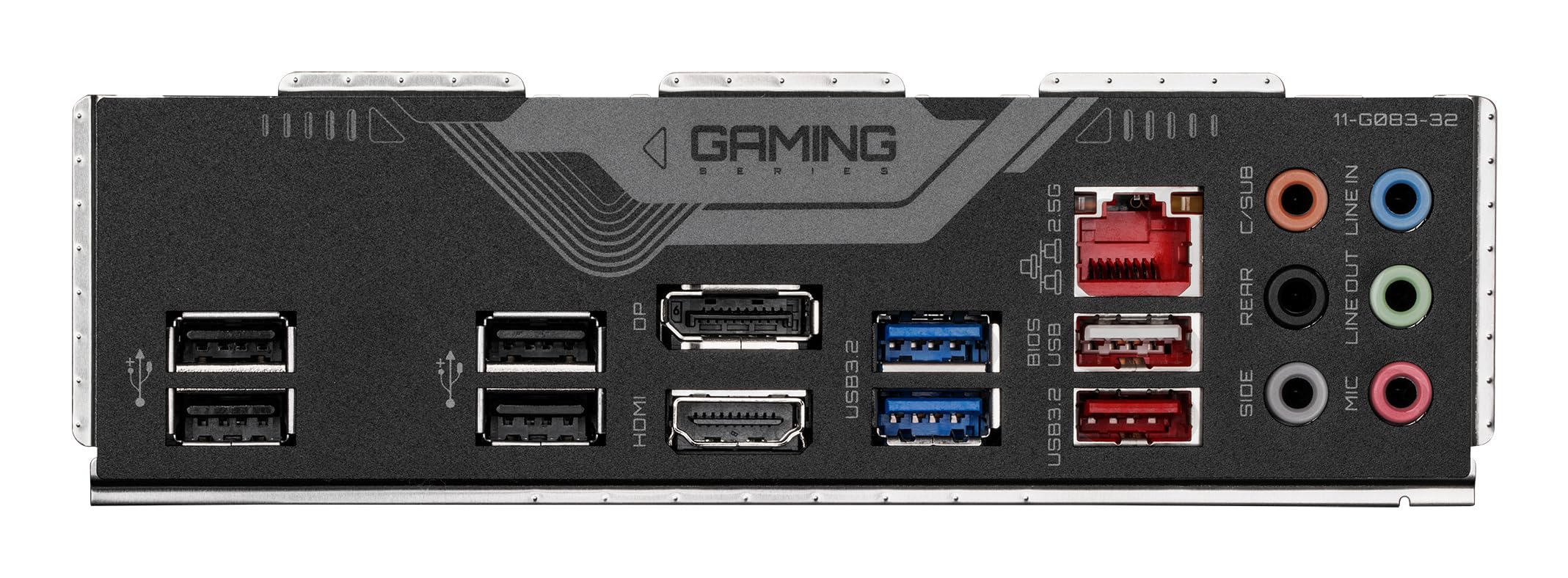

ATX motherboard compatible with Intel 14th/13th/12th Generation Core processors. Featuring PCIe 5.0 x16 slots and highly efficient cooling systems, these are the perfect choice for users who want DDR4 memory support and cost performance concerns. Form Factor: ATX (12.0 x 9.6 inches (305 x 244 mm) Chipset: Intel B760 CPU socket, compatible CPU: LGA1700, Intel 14/13/12th generation Core, Pentium Gold, Celeron processors Memory Socket: 4x DDR4 UDIMM up to 128GB (XMP compatible) ●Expansion Slots: 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (x1 operation) ●Storage: 3x M.2 PCIe 4.0 x4, 4x SATA3 Video Output: 1 x HDMI (2.1), 1 x DisplayPort (1.2). ●USB(Rear): 1x USB 10Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 5Gbps Type-A, 5x USB 2.0 ●USB(Front):1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 Sound: 7.1 ch HD Audio Network: Wired 1x 2.5GbE LAN Supported OS: Windows 10/11 64-bit Accessories: SATA cable, M.2 screws
