DROK Probador de transistores Medidor LCR, Probador de condensadores de transistores Mosfet, Mega328 NPN PNP Transistor Diodo Resistencia Inductor Capacitancia MOS SCR ESR Medidor Detector automático
- Marca: DROK
- Código de Producto: B01MS1FOYM
-✔ WIDE APPLICATION: This multifunctional capacitance meter can be used to test triode, field-effect tube(FET), diode, resistor, capacitor, inductor, MOS, SCR, which is available for various electric transistor testing.

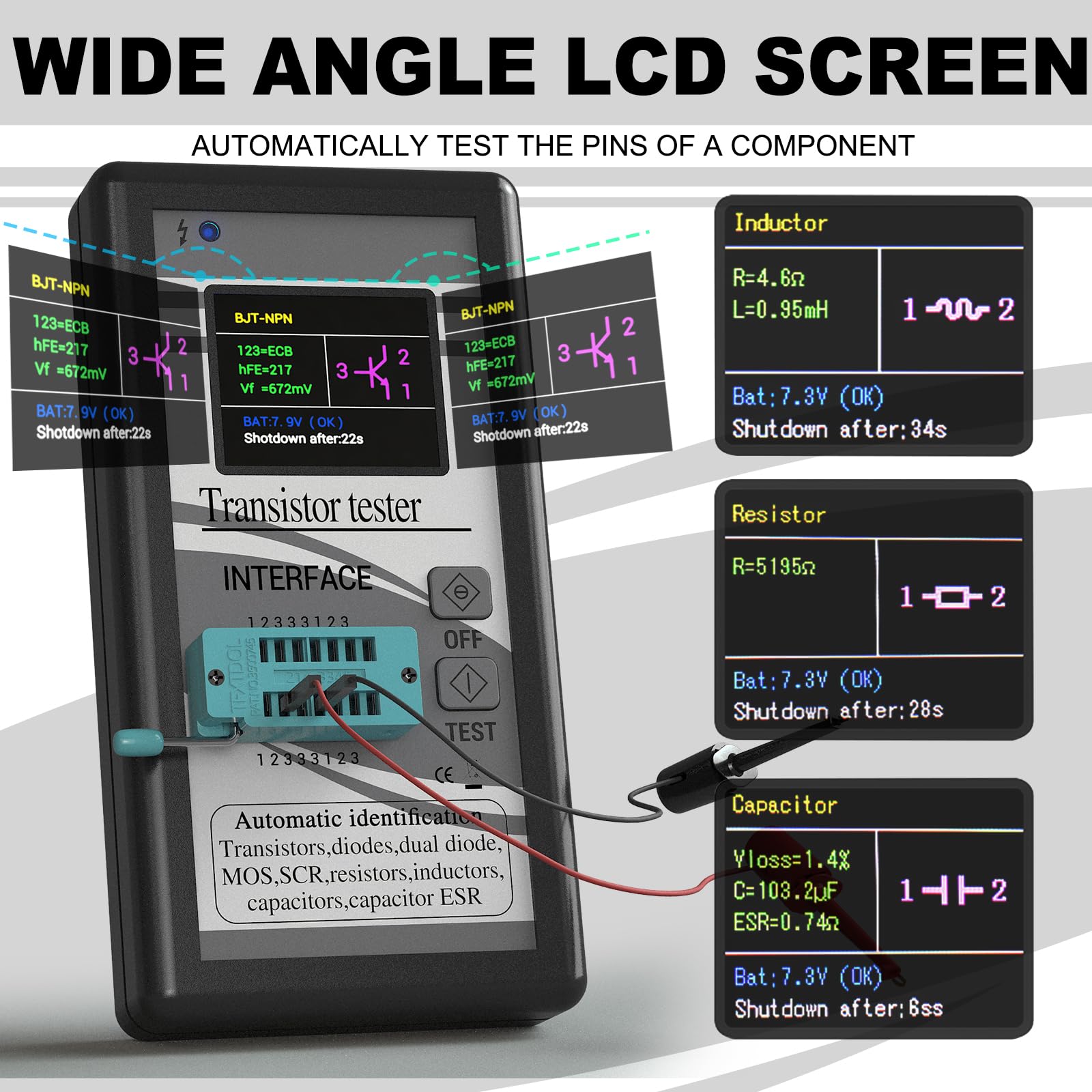

-✔ LARGE & CLEAR LCD DIGITAL DISPLAY: This amazing detector adopts 1.8" TFT color LCD screen with high-resolution. Besides, different parameter is shown with different color, convenient and simple for you to check the parameter.

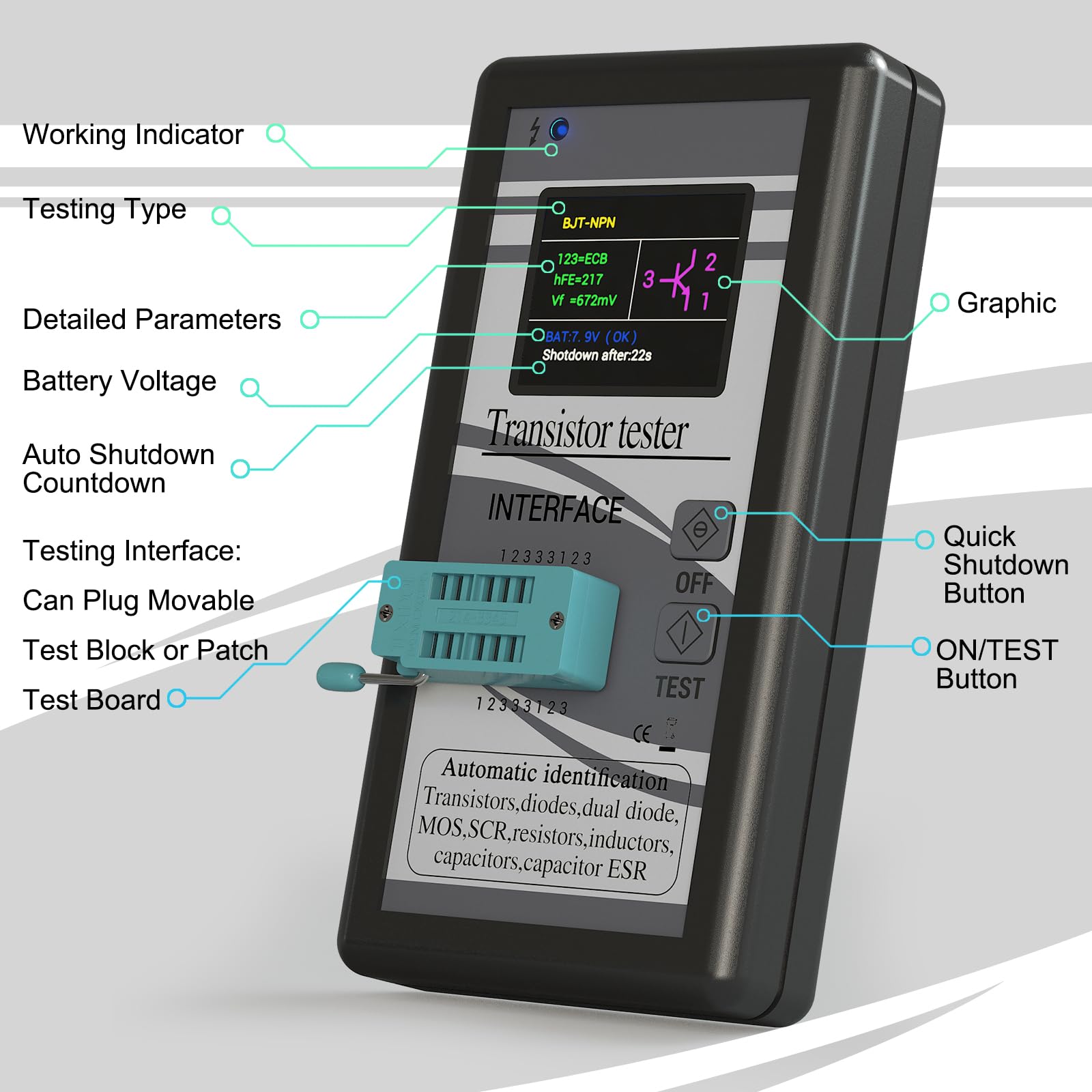

-✔ AUTOMATICAL IDENTIFICATION: DROK intelligent transistor checker is able to detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices automatically.
-✔ BATTERY POWERED: This monitor is powered by DC 9V battery (not included).
-✔ AUTO SHUT-DOWN FUNCTION: Our advanced electronic transistor tester owns auto shut-down function. There is shutdown countdown displayed on the monitor and the shutdown countdown time can be extended to 40s.

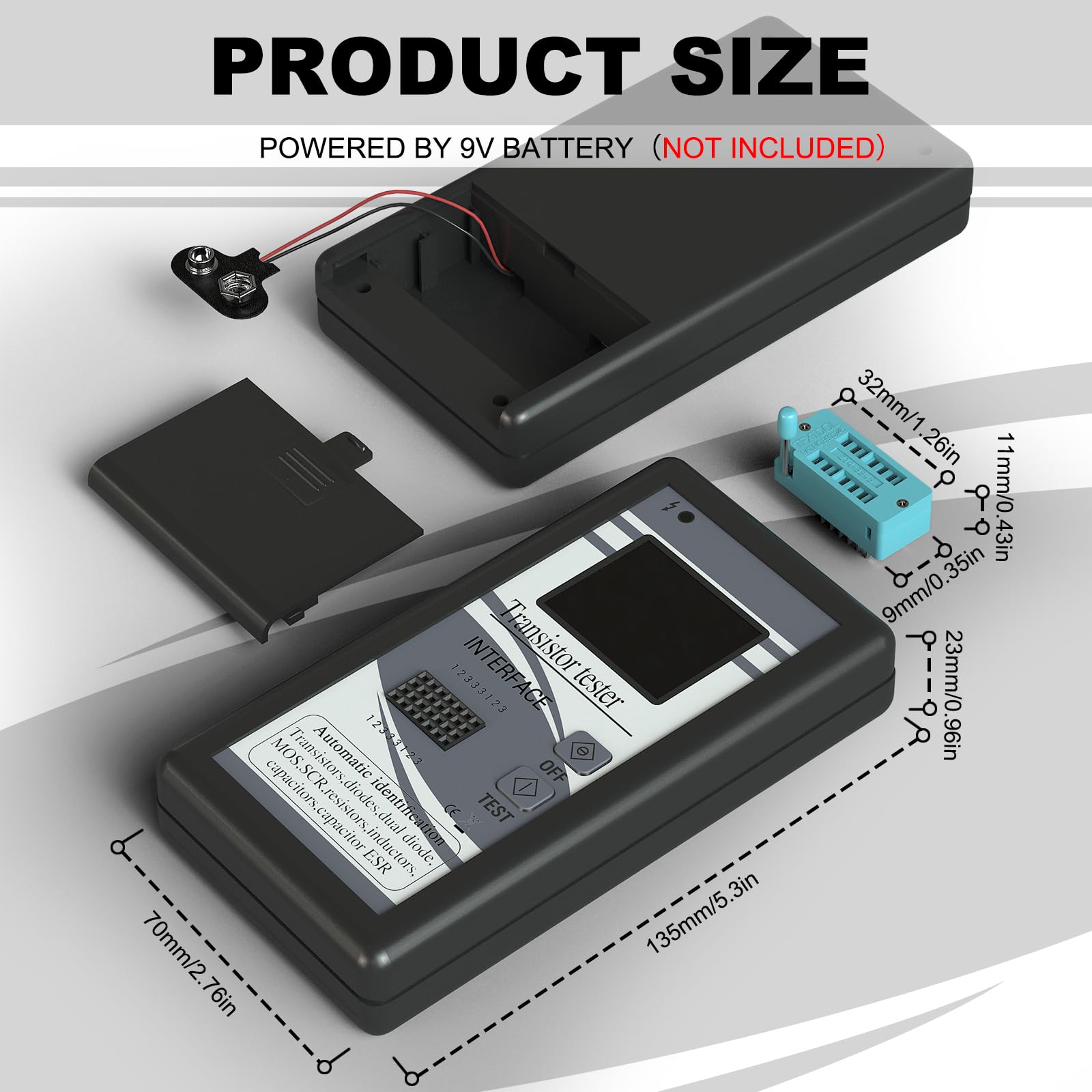

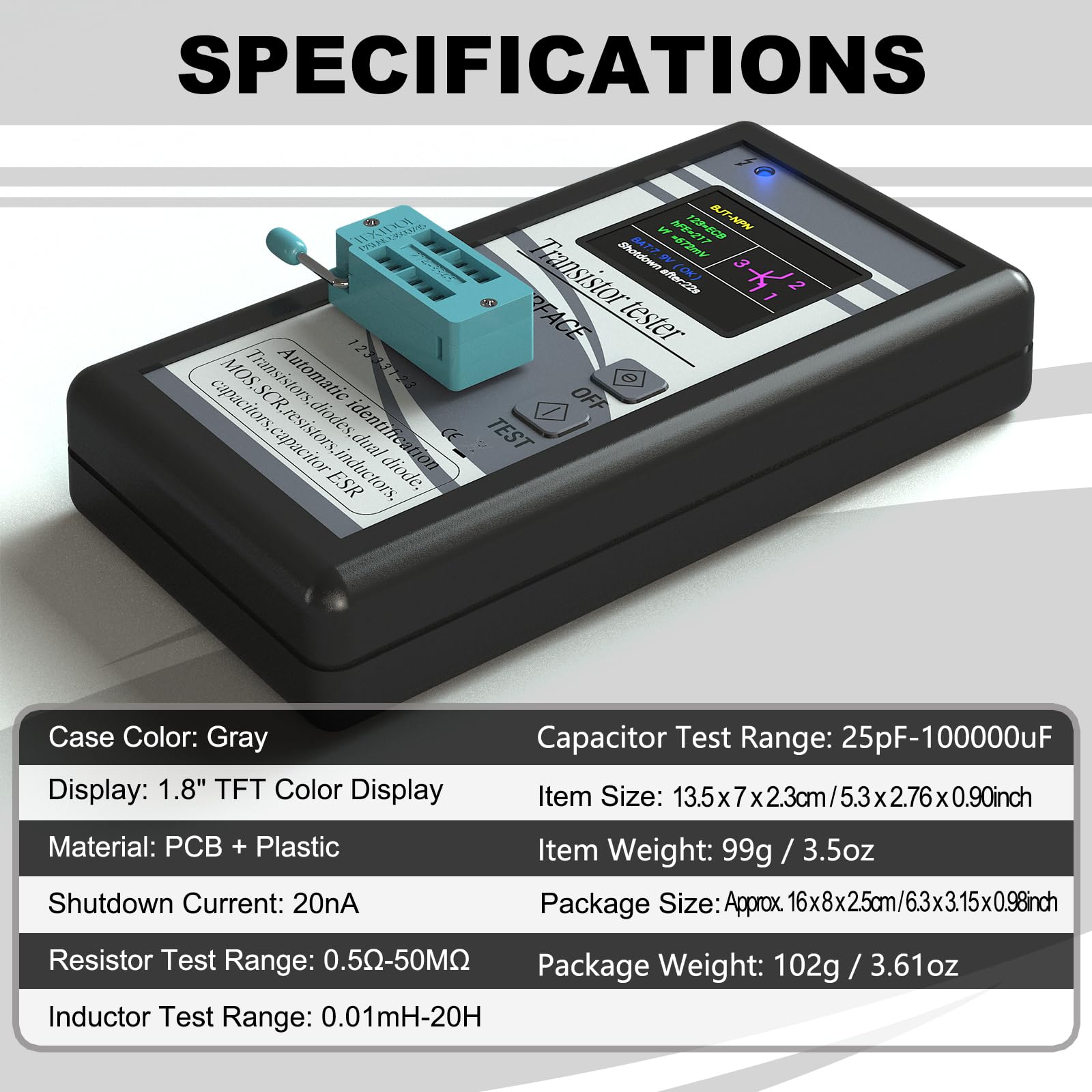

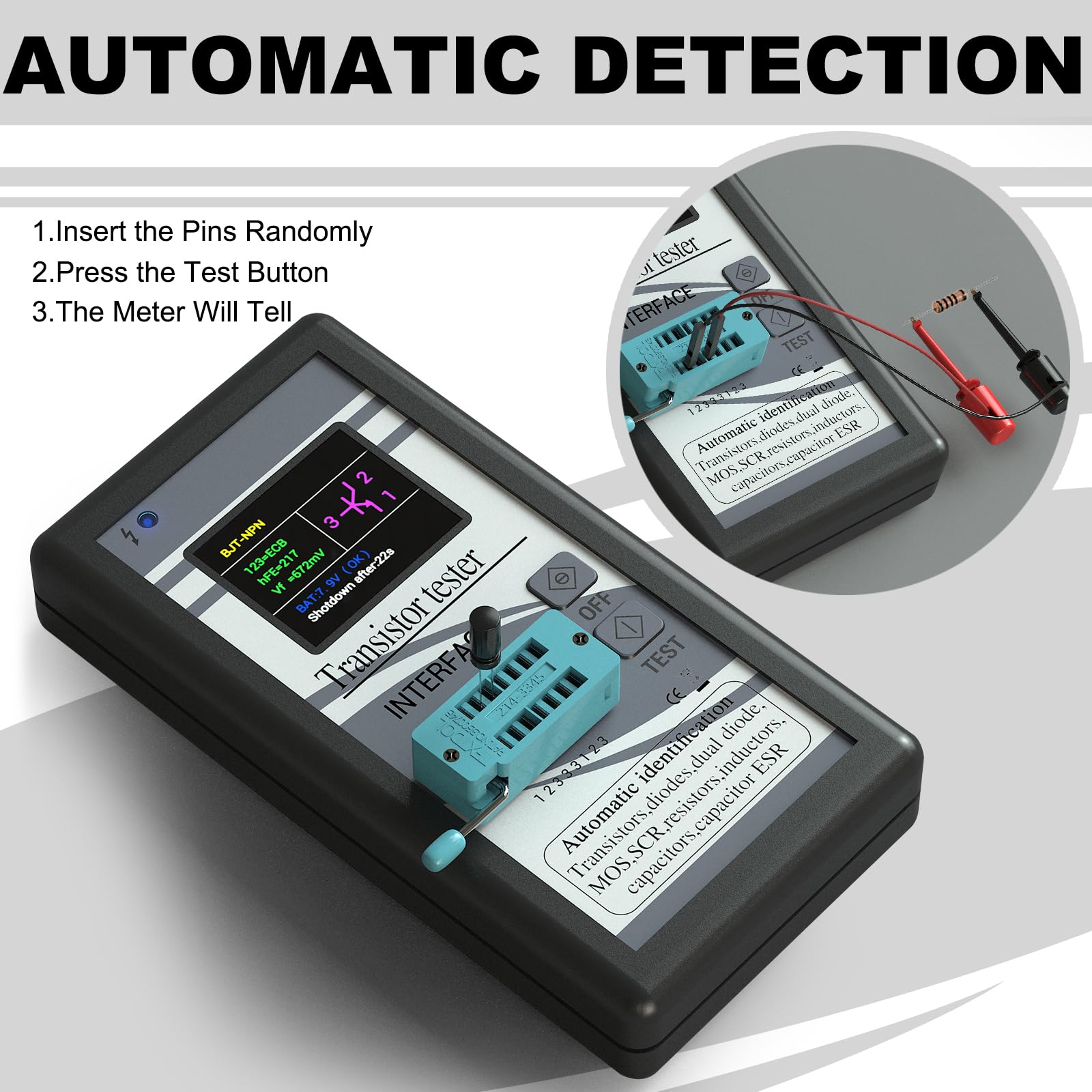

DROK Electronic Component Tester Parameters: -- Voltage supply: DC 9V Battery 6F22 (NOT Included) -- Transistors range: 2 or less (including 2) P-N junction transistor -- Resistors range: 0.5Ω - 50MΩ -- Capacitors range: 25pF-100000uF -- Inductors range: 0.01mH - 20H -- Dimensions: 70mm × 135mm × 24mm Operating Instruction: >> The pins of the electronic components can be connected to the 1,2,3 pin optionally. This multifunctional meter is automatic identification type, which can detect the pin sequence, graphic display and parameters automatically. >> Eg. If you want to test a triode, you do not need to worry about the BEC order of 1,2,3 pin. You just insert the triode into the testing interface optionally and then push the testing button. The meter will identify it if it is triode, field-effect tube, controlled silicon or resistance capacitance. After that, the tester will detect it if it is NPN OR PNP and then the BCE order and other information. Testing Range: ▶ Range of Transistor: Less than 2 (included 2) transistor which is made up of PN junction. Do not have any other resistance components in the interior. ▶ Range of Resistance Testing: 0.5Ω-50MΩ ▶ Range of Inductance Testing: 0.01mH-20H ▶ Range of Capacitance Testing: 25pf - 100000uF Package includes: 1× Multifunction Transistor Tester
