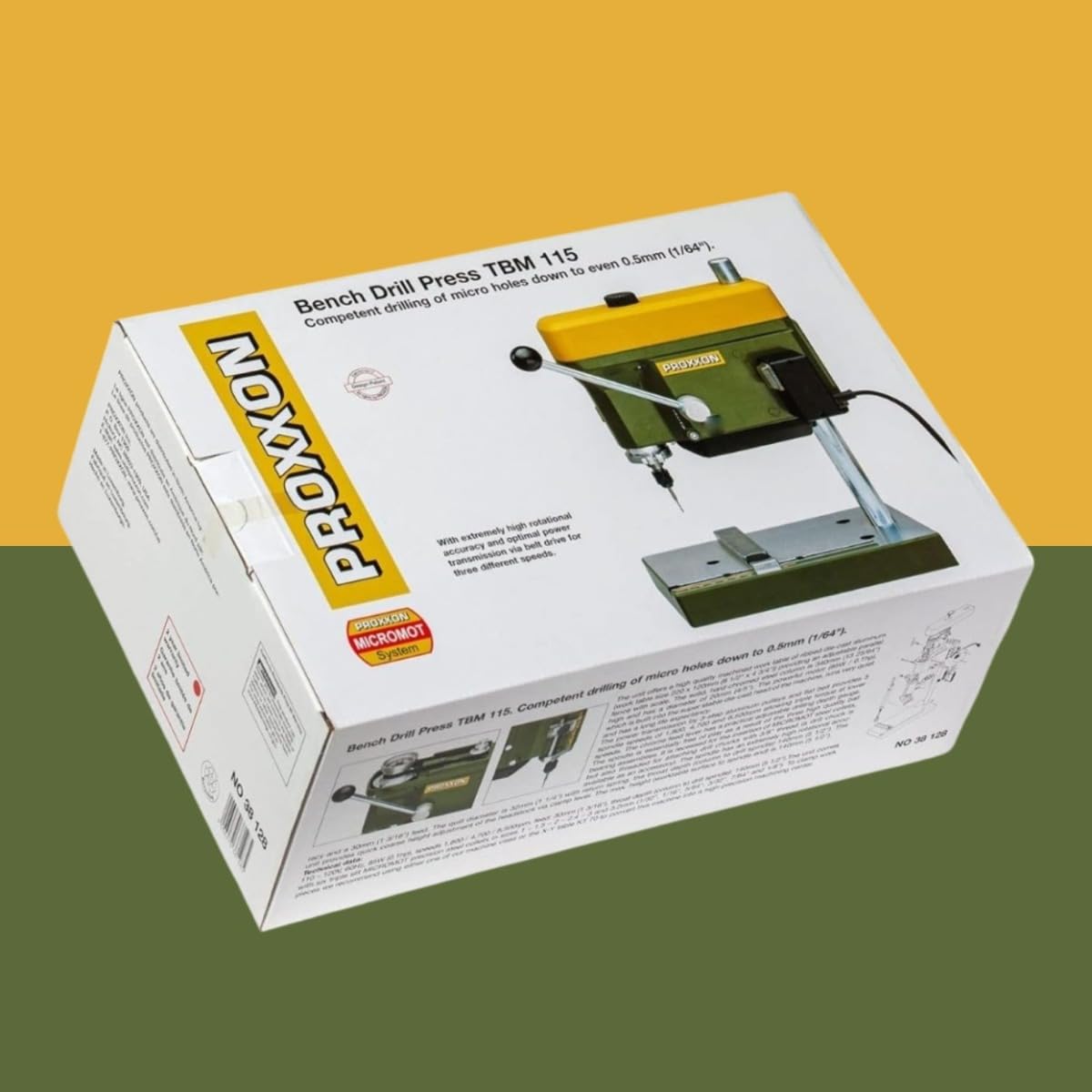

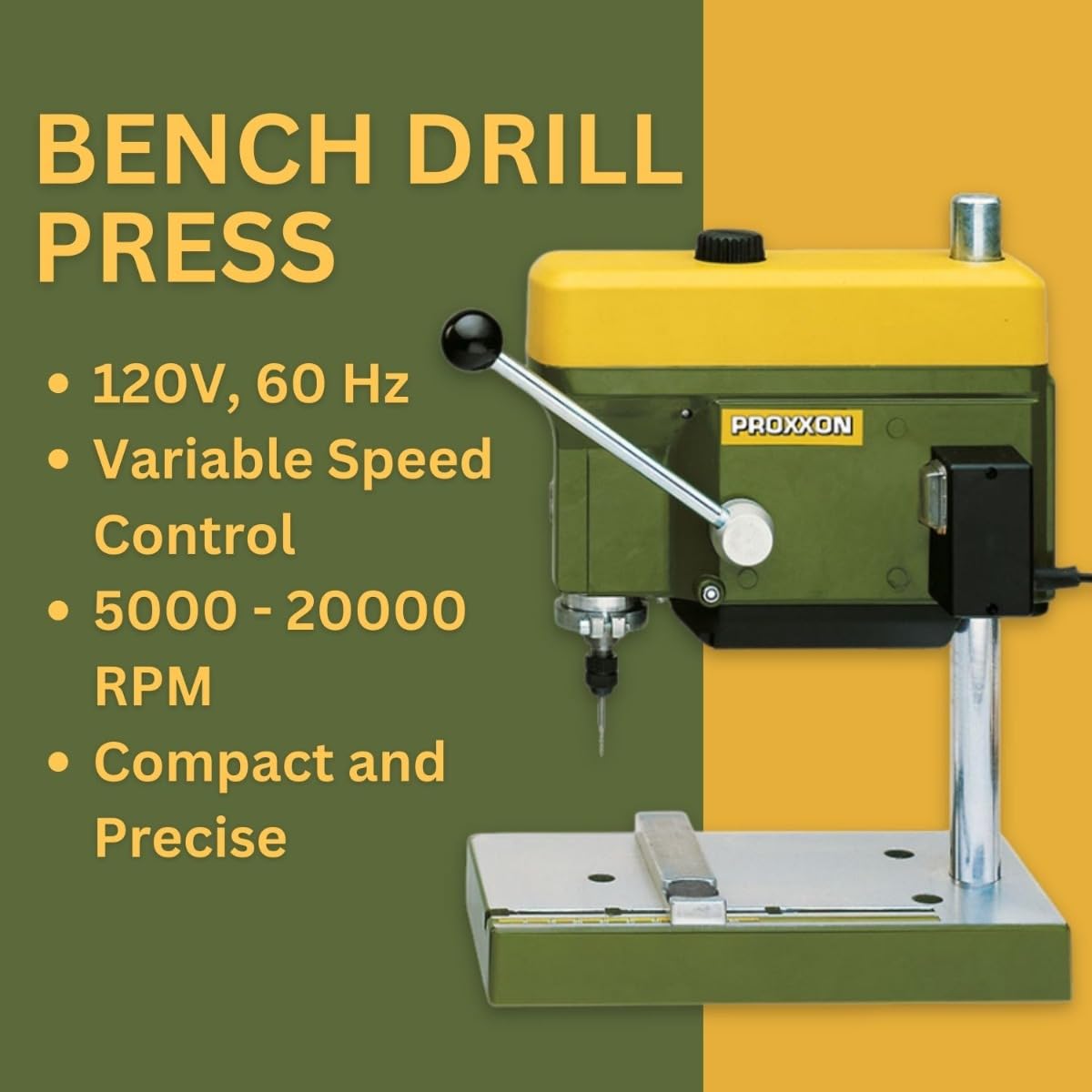

Prensa de taladro de banco de precisión PROXXON - Capacidad de microagujeros, profundidad y mesa ajustables, selección de 3 velocidades, diseño duradero, con 6 pinzas de precisión para proyectos detallados - TBM 115
- Marca: Proxxon
- Código de Producto: B0017PUR1Y
-Micro Precision Drilling: Perfect for drilling micro holes down to 1/64" (0.5 mm), ideal for intricate projects and precision work.

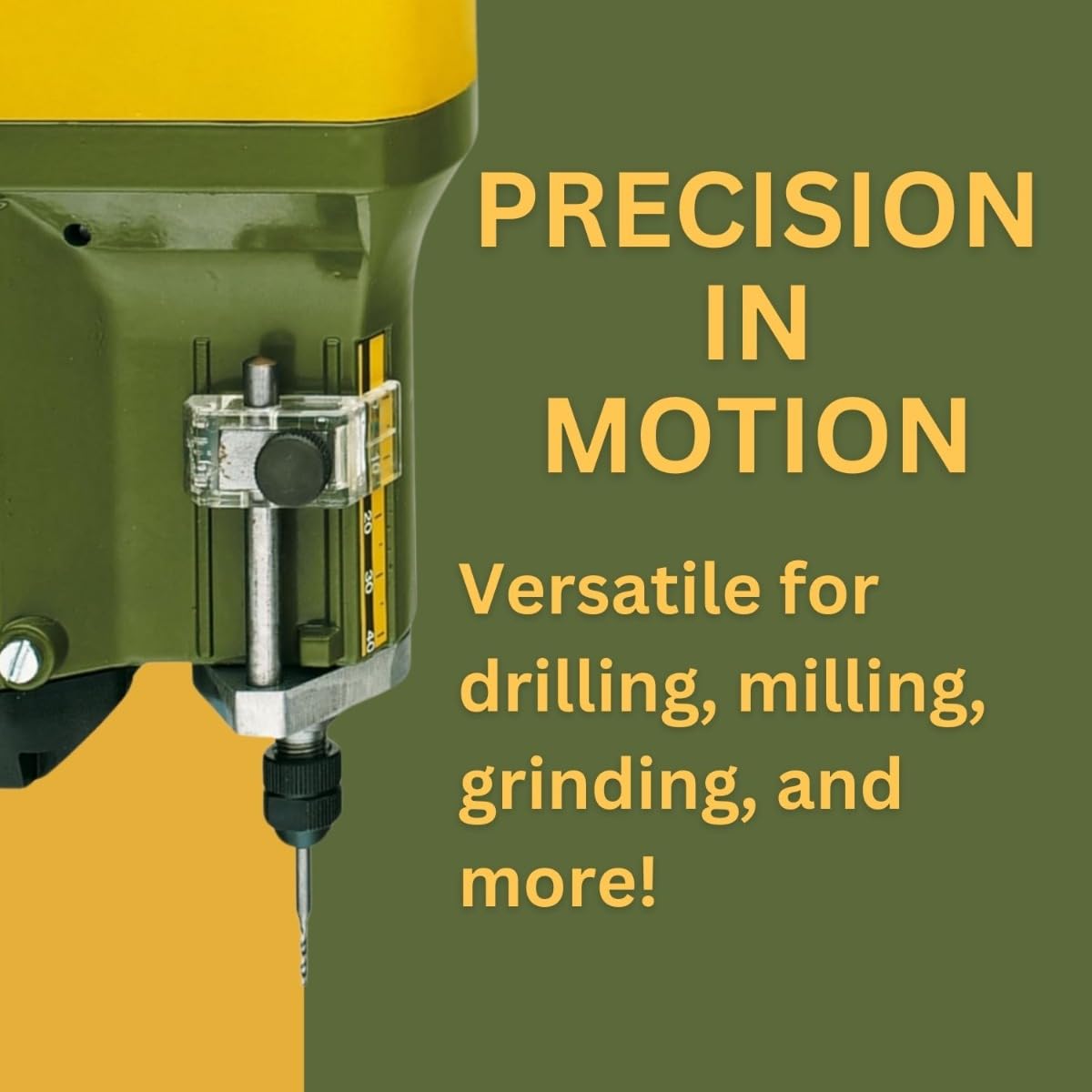

-Adjustable Features: Comes with an adjustable parallel fence with scale and depth gauge, enhancing drilling accuracy and consistency.
-Versatile Speed Options: Equipped with three spindle speeds to cater to various torque requirements, ensuring optimal performance for all materials.
-High-Quality Construction: Features a ribbed die-cast aluminum table and a solid hard-chromed steel column for stability and durability.

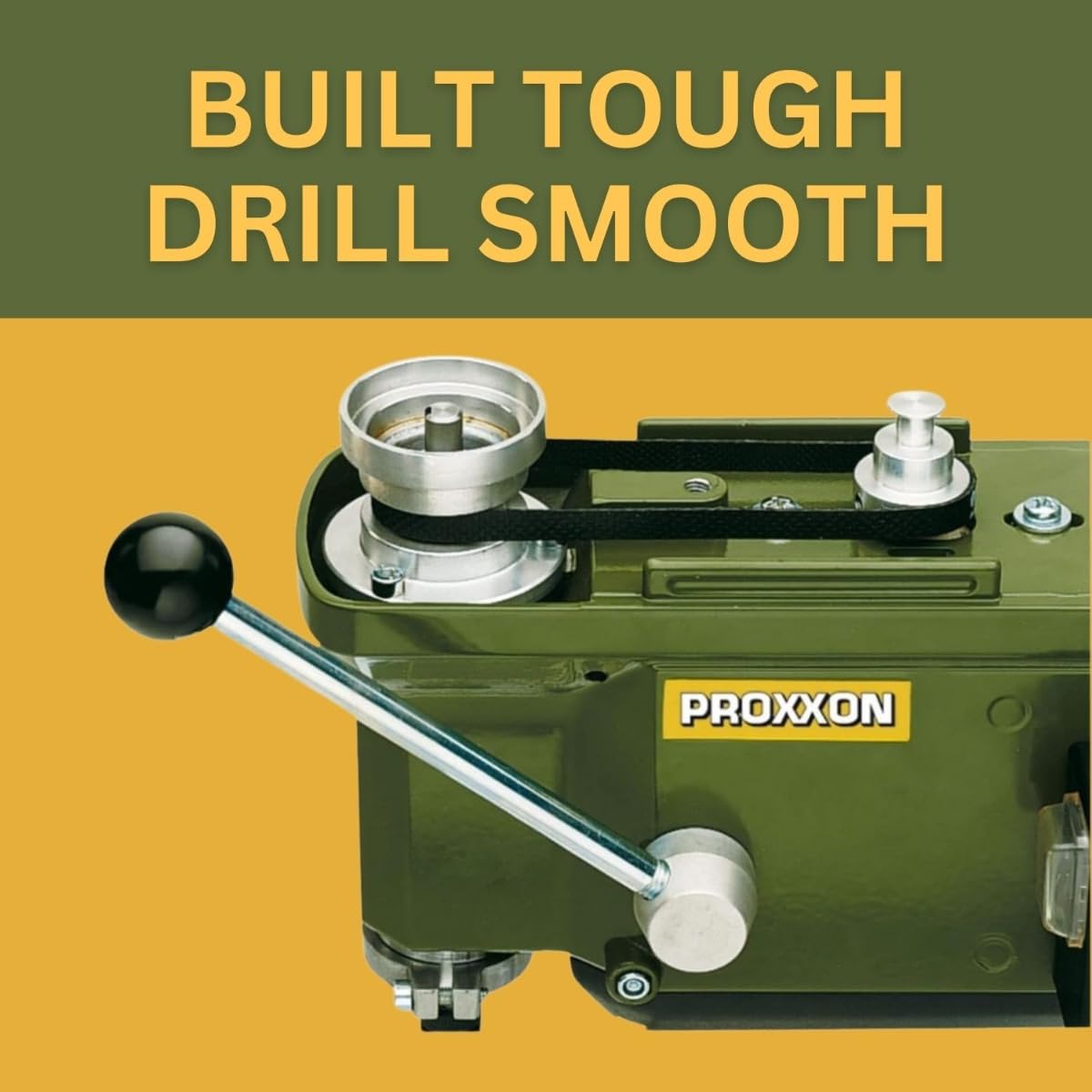

Product Description The unit offers a high quality machined work table of ribbed die-cast aluminum (work table size 8 1/2" x 4 3/4" (220 x 120mm)) providing an adjustable parallel fence with scale. The solid, hard-chromed steel column is 11" high (280mm) and has a diameter of 4/5" (20mm). The powerful motor, which is built into the super stable die-cast head of the machine, runs very quiet and has a long life expectancy. The power transmission by 3-step aluminum pulleys and flat belt provides 3 spindle speeds of 1,800, 4,700 and 8,500rpm allowing triple torque at lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is essentially free of play as a result of the three high quality ball bearing assemblies. It is recessed for the insertion of MICROMOT steel collets, but also threaded for attaching drill chucks with 3/8" thread. The spindle has an extremely high rotational accuracy and a 1 3/16" (30mm) feed. The quill diameter is 1 1/4" (32mm) with return spring, the throat depth (column to drill spindle) is 5 1/2" (140mm). The unit provides quick coarse height adjustment of the headstock via clamp lever. The max. height (worktable surface to spindle end) is 5 1/2" 140mm). Technical data: 110 - 120V, 60Hz, 85W (0.115hp), speeds 1,800/ 4,700/8,500rpm. The unit comes with six triple slit MICROMOT precision steel collets in sizes 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm). To clamp work pieces we recommend using either one of our machine vises or the X-Y table KT 70 to convert this machine into a high-precision machining center. From the Manufacturer Proxxon Bench Drill Press TBM 115 - This 3 speed drill press excels at drilling micro holes down to 1/64 inch (0.5 millimeters). The unit offers a high quality machined work table of ribbed die cast aluminum, 8-1/2 inch x 4-3/4 inch in side. It provides an adjustable parallel fence with scale. The solid high chrome steel column is 11 inches high and is 4/5 inch in diameter. The powerful motor is built into the super stable die cast head of the machine, runs very quietlyand has a long life expectancy. The power transmission by 3 step aluminum pulley and flat belt provides 3 spindle speeds of 1800, 4700, 8500 rpm. This allows triple torque and lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is free of play because of the 3 high quality ball bearing assemblies. Spindle is recessed for the insertion of Micromot steel collets but also threaded for attaching drill chucks with 3/8 inch thread. The spindle has an extremely high rotational accuracy and a 1-3/16 inch (30 millimeter) feed. The quill diameter is 1-1/4 inch with return spring; the throat depth column to spindle is 5-1/2 inches. The unit provides quick coarse adjustment of the headstock via the clamp lever. Maximum height work table to spindle is 5-1/2 inches.
-Adjustable Features: Comes with an adjustable parallel fence with scale and depth gauge, enhancing drilling accuracy and consistency.
-Versatile Speed Options: Equipped with three spindle speeds to cater to various torque requirements, ensuring optimal performance for all materials.
-High-Quality Construction: Features a ribbed die-cast aluminum table and a solid hard-chromed steel column for stability and durability.
Product Description The unit offers a high quality machined work table of ribbed die-cast aluminum (work table size 8 1/2" x 4 3/4" (220 x 120mm)) providing an adjustable parallel fence with scale. The solid, hard-chromed steel column is 11" high (280mm) and has a diameter of 4/5" (20mm). The powerful motor, which is built into the super stable die-cast head of the machine, runs very quiet and has a long life expectancy. The power transmission by 3-step aluminum pulleys and flat belt provides 3 spindle speeds of 1,800, 4,700 and 8,500rpm allowing triple torque at lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is essentially free of play as a result of the three high quality ball bearing assemblies. It is recessed for the insertion of MICROMOT steel collets, but also threaded for attaching drill chucks with 3/8" thread. The spindle has an extremely high rotational accuracy and a 1 3/16" (30mm) feed. The quill diameter is 1 1/4" (32mm) with return spring, the throat depth (column to drill spindle) is 5 1/2" (140mm). The unit provides quick coarse height adjustment of the headstock via clamp lever. The max. height (worktable surface to spindle end) is 5 1/2" 140mm). Technical data: 110 - 120V, 60Hz, 85W (0.115hp), speeds 1,800/ 4,700/8,500rpm. The unit comes with six triple slit MICROMOT precision steel collets in sizes 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm). To clamp work pieces we recommend using either one of our machine vises or the X-Y table KT 70 to convert this machine into a high-precision machining center. From the Manufacturer Proxxon Bench Drill Press TBM 115 - This 3 speed drill press excels at drilling micro holes down to 1/64 inch (0.5 millimeters). The unit offers a high quality machined work table of ribbed die cast aluminum, 8-1/2 inch x 4-3/4 inch in side. It provides an adjustable parallel fence with scale. The solid high chrome steel column is 11 inches high and is 4/5 inch in diameter. The powerful motor is built into the super stable die cast head of the machine, runs very quietlyand has a long life expectancy. The power transmission by 3 step aluminum pulley and flat belt provides 3 spindle speeds of 1800, 4700, 8500 rpm. This allows triple torque and lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is free of play because of the 3 high quality ball bearing assemblies. Spindle is recessed for the insertion of Micromot steel collets but also threaded for attaching drill chucks with 3/8 inch thread. The spindle has an extremely high rotational accuracy and a 1-3/16 inch (30 millimeter) feed. The quill diameter is 1-1/4 inch with return spring; the throat depth column to spindle is 5-1/2 inches. The unit provides quick coarse adjustment of the headstock via the clamp lever. Maximum height work table to spindle is 5-1/2 inches.
