RATTMMOTOR Motor de husillo impermeable de 4 rodamientos de 246 mm de longitud, motor de husillo refrigerado por agua de 2,2 KW 220 V ER20 CNC Router husillo de metal tallado 24000 RPM 80 mm 8 A 400 Hz para fresadora CNC
- Marca: RATTMMOTOR
- Código de Producto: B071HYXK9X

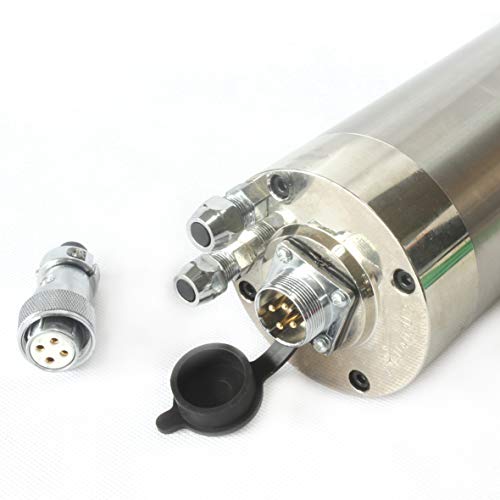

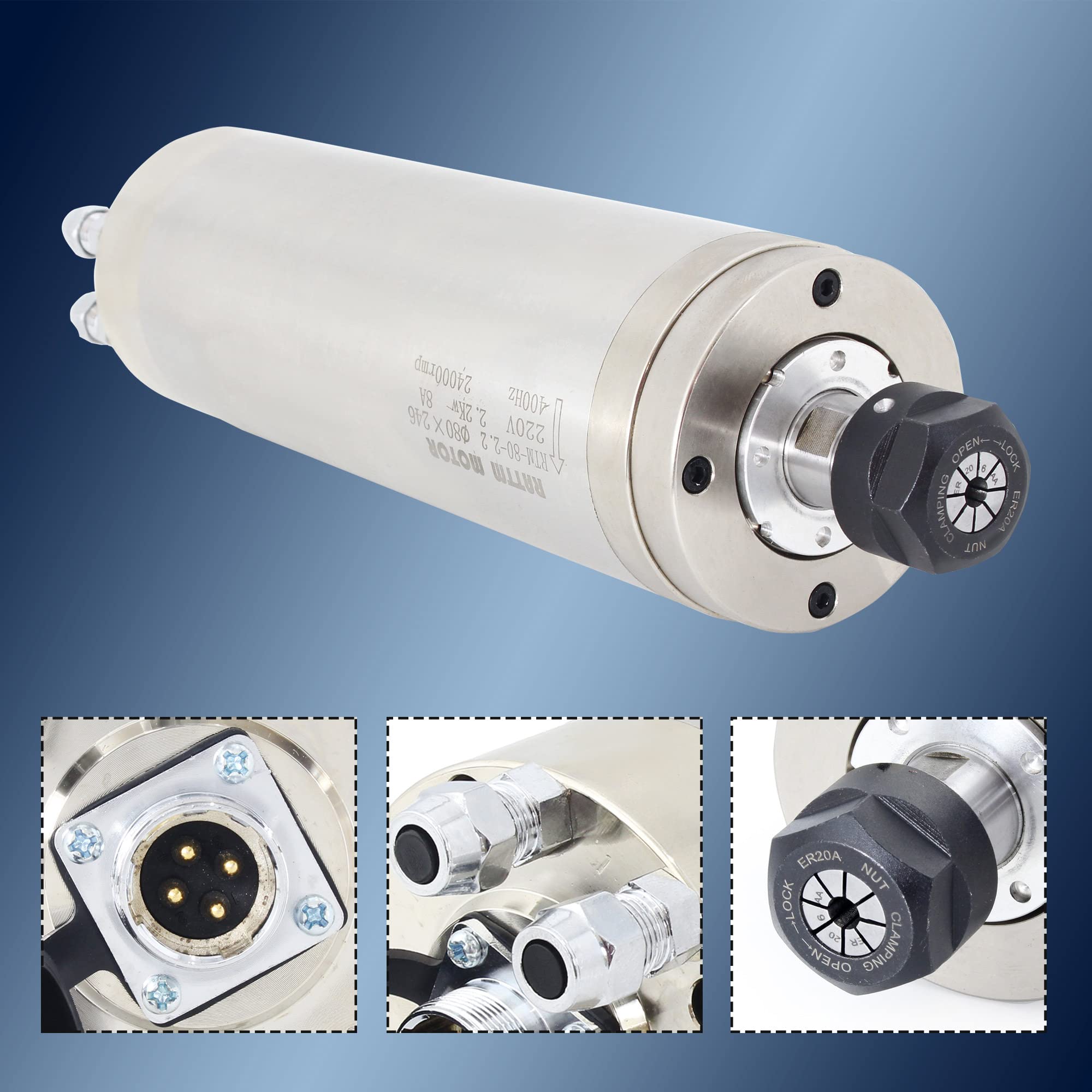

-✅【How to Wire The Spindle Motor】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required.

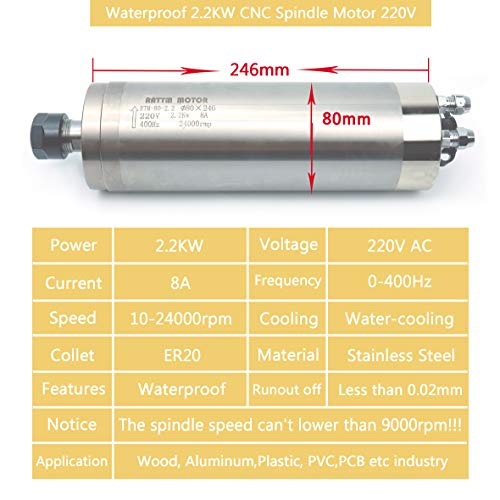

-✅【WATERPROOF Spindle】This is a waterproof 220V-2.2KW water-cooled 8A Φ 80x246mm spindle motor. Frequency is 400HZ, Precision tapered bore 0.01mm and runout off is less than 0.02mm. It is mainly suitable for non-metallic engraving, such as wood carving/engraving machine, advertisement engraving machine,CNC machine.
-✅【24000RPM High Speed】0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle only can rotate clockwise but not counterclockwise.
-✅【4pcs High Quality Bearings】P4 high speed bearing, dynamic balance, better ensure the accuracy of the spindle, powerful power, large torque, stable performance.

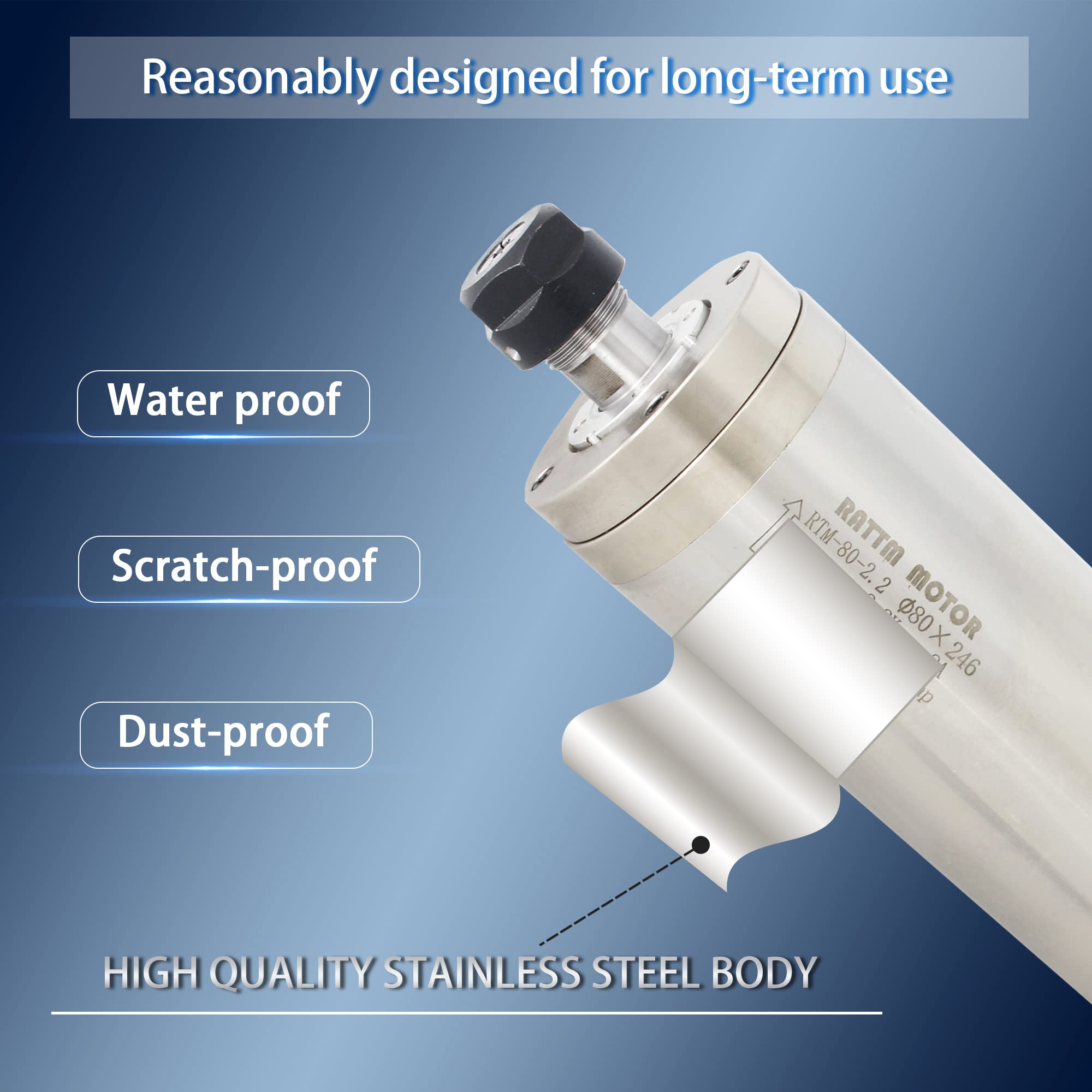

-✅【Design Advantages】The design of the dust-proof cover on the front of the spindle and the use of stainless steel body can effectively prevent dust, water and rust.
-✅【WATERPROOF Spindle】This is a waterproof 220V-2.2KW water-cooled 8A Φ 80x246mm spindle motor. Frequency is 400HZ, Precision tapered bore 0.01mm and runout off is less than 0.02mm. It is mainly suitable for non-metallic engraving, such as wood carving/engraving machine, advertisement engraving machine,CNC machine.
-✅【24000RPM High Speed】0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle only can rotate clockwise but not counterclockwise.
-✅【4pcs High Quality Bearings】P4 high speed bearing, dynamic balance, better ensure the accuracy of the spindle, powerful power, large torque, stable performance.
-✅【Design Advantages】The design of the dust-proof cover on the front of the spindle and the use of stainless steel body can effectively prevent dust, water and rust.
