RioRand 350W 6-60V PWM DC Controlador de velocidad de motor eléctrico sin escobillas con Hall
- Marca: RioRand
- Código de Producto: B087M2378D

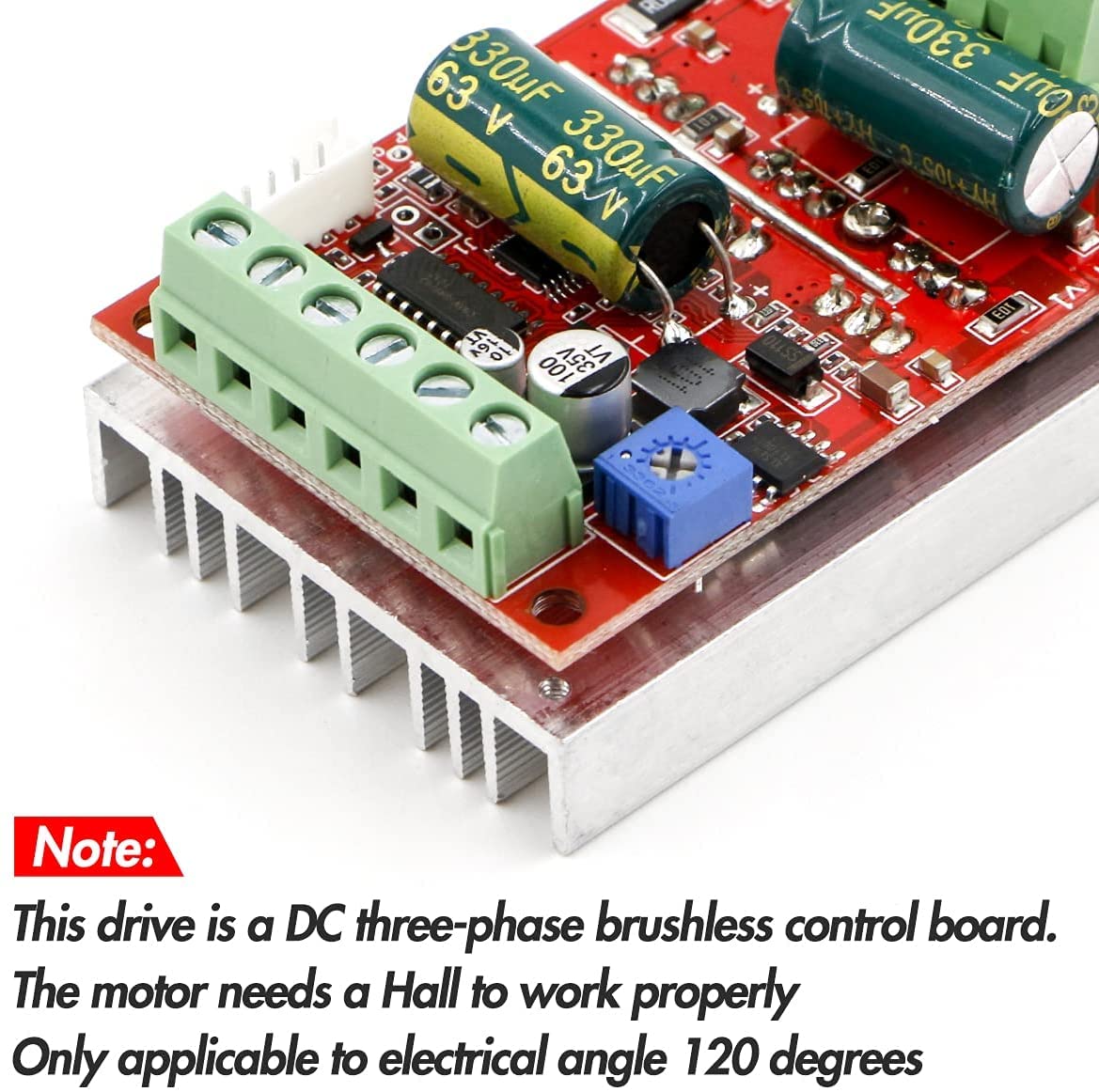

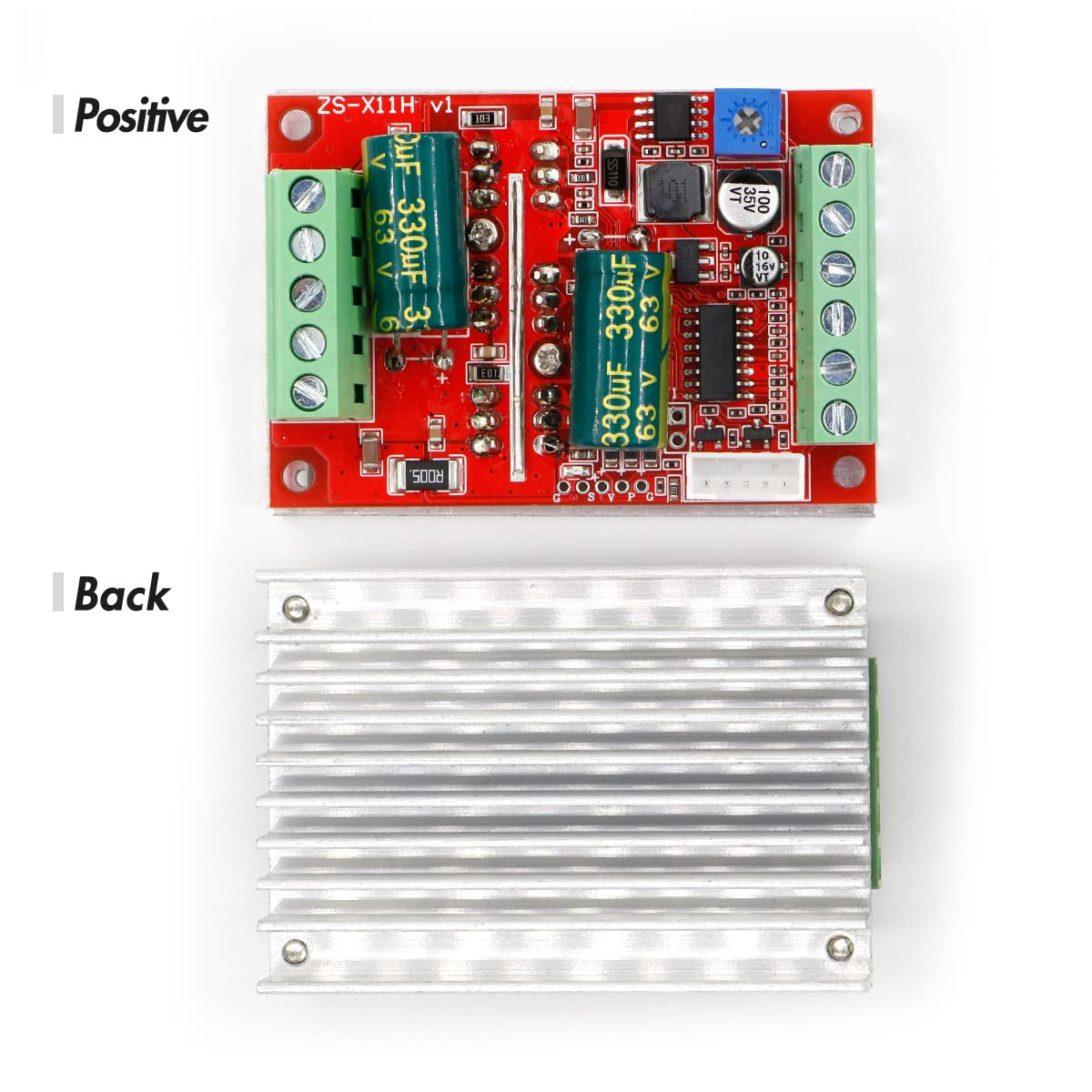

-Three phase DC brushless with Hall motor controller, need motor with Hall to work properly. Brushless motor driver board, high power PLC. This driver is only for DC brushless with Hall motor with electric angle 120 degrees.

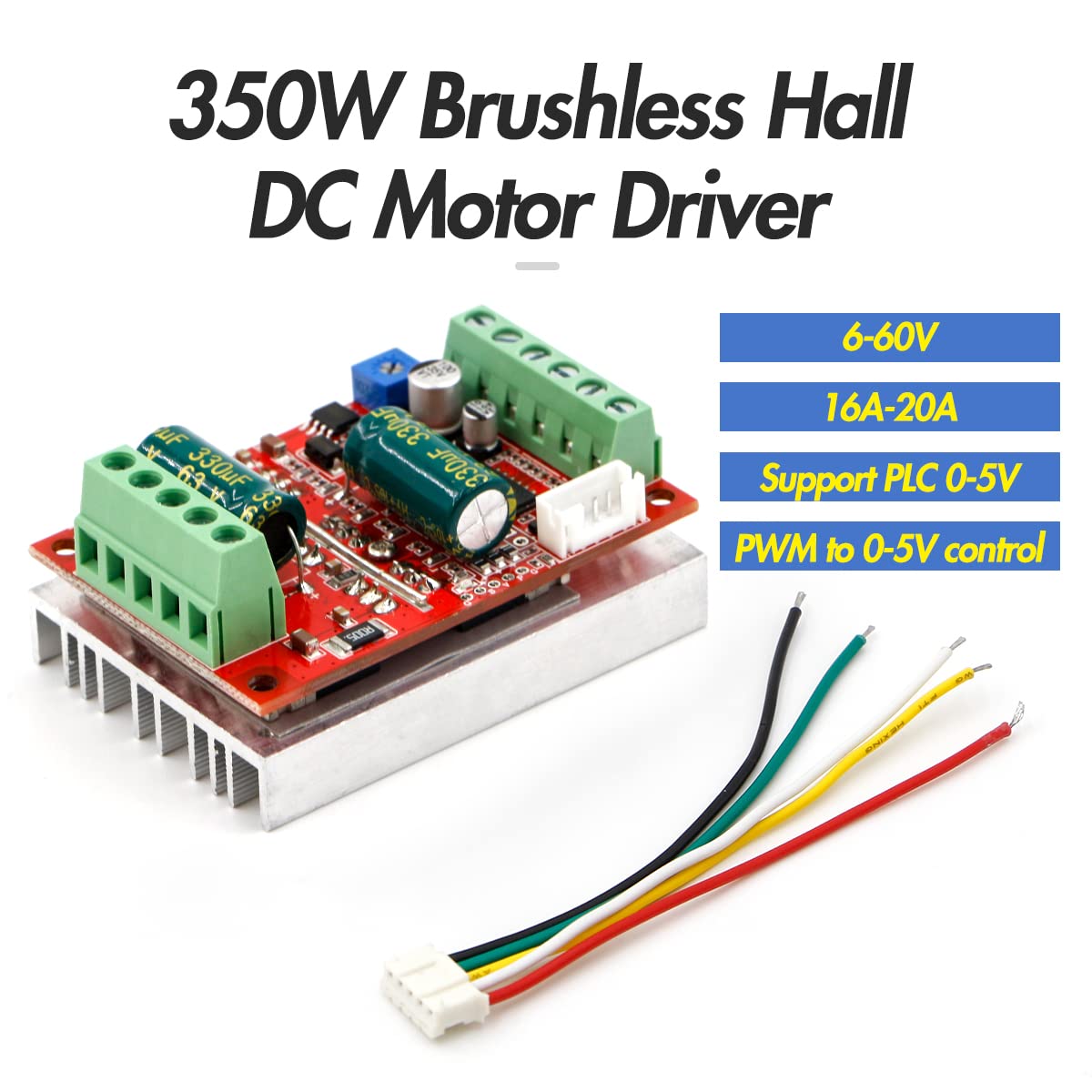

-New upgrade BLDC wide voltage 6-60V high power 350W, DC three-phase brushless with Hall controller, support PLC 0-5V touch volume control, support PWM control amplitude 2.5-5V.
-The main board power supply circuit without fuse, can be added(by yourself), the power supply positive and negative terminals will cause permanent damage to some of the chips on the board (not even for a few seconds when the high current)
-Motor output for sampling overcurrent protection, due to the module power supply current are very large. Do not artificially cause a short circuit in the normal operation of the module, a short circuit will damage the tube. Wiring test machine for small-current low-voltage test, successful then through the high-current high-voltage . Bare board module, pay attention to wire insulation when wiring, forbid strong voltage to touch the board.
-Do not connect the obvious and drive module voltage, current, power phase does not match or far from the motor to avoid inexplicable "nonsense" damage.

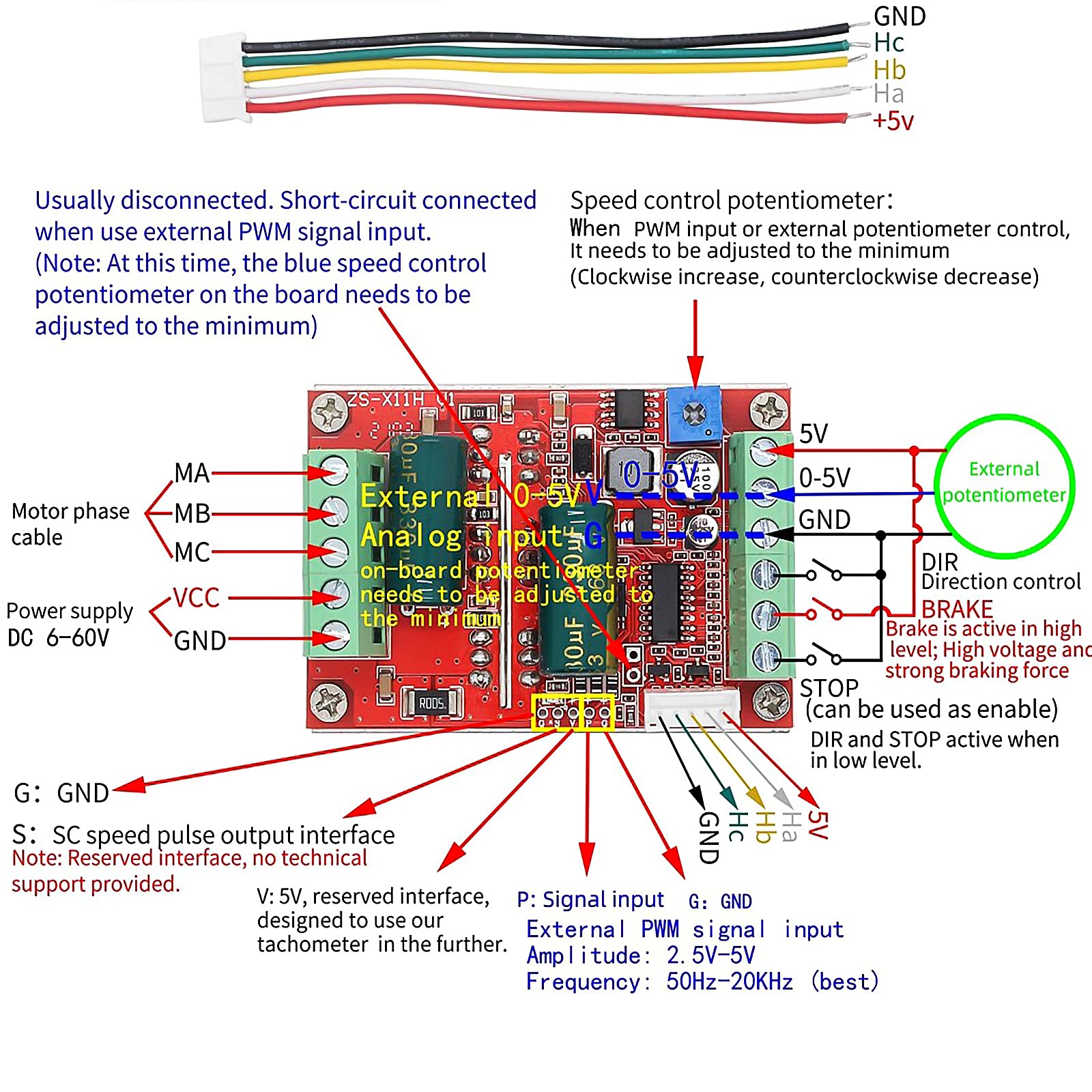

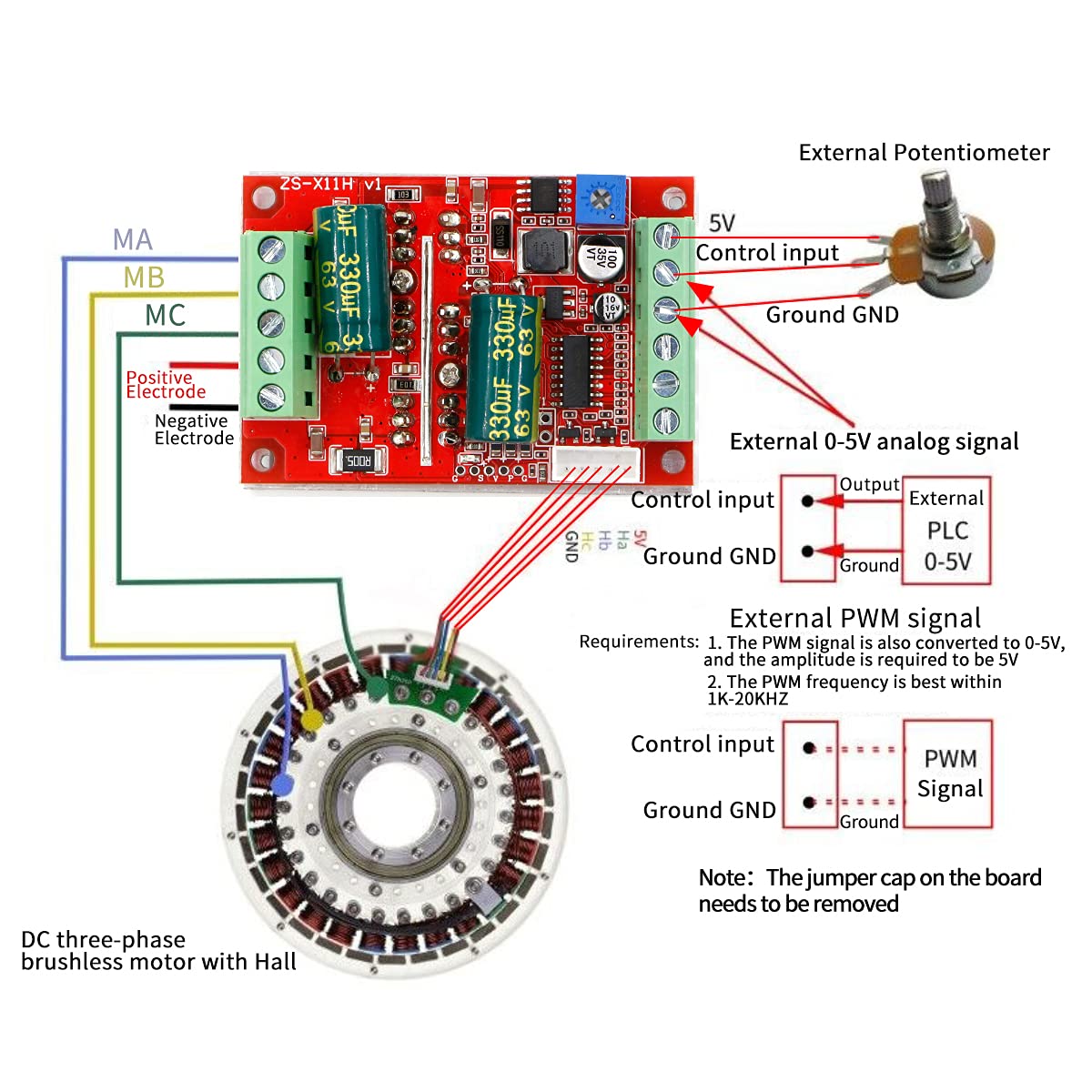

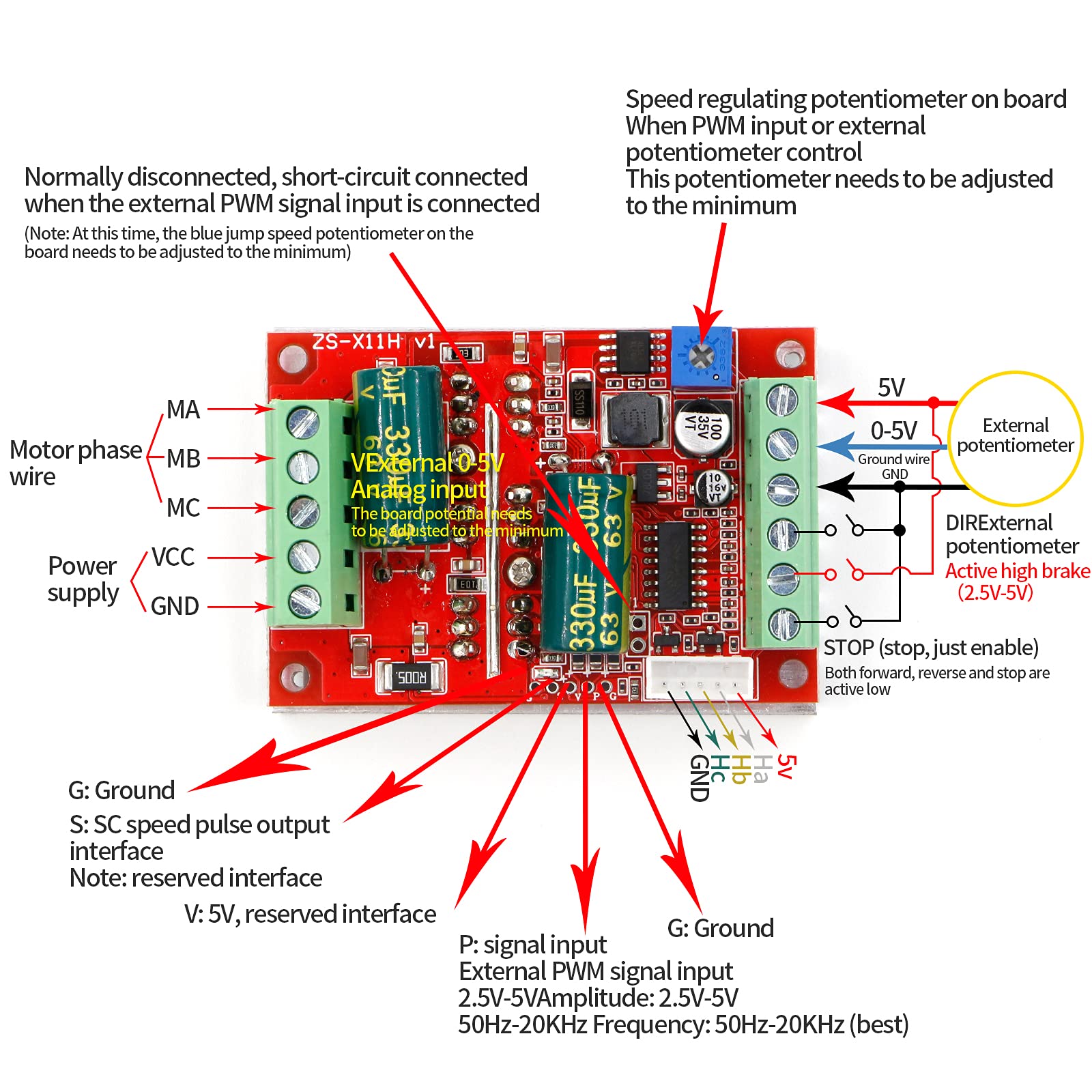

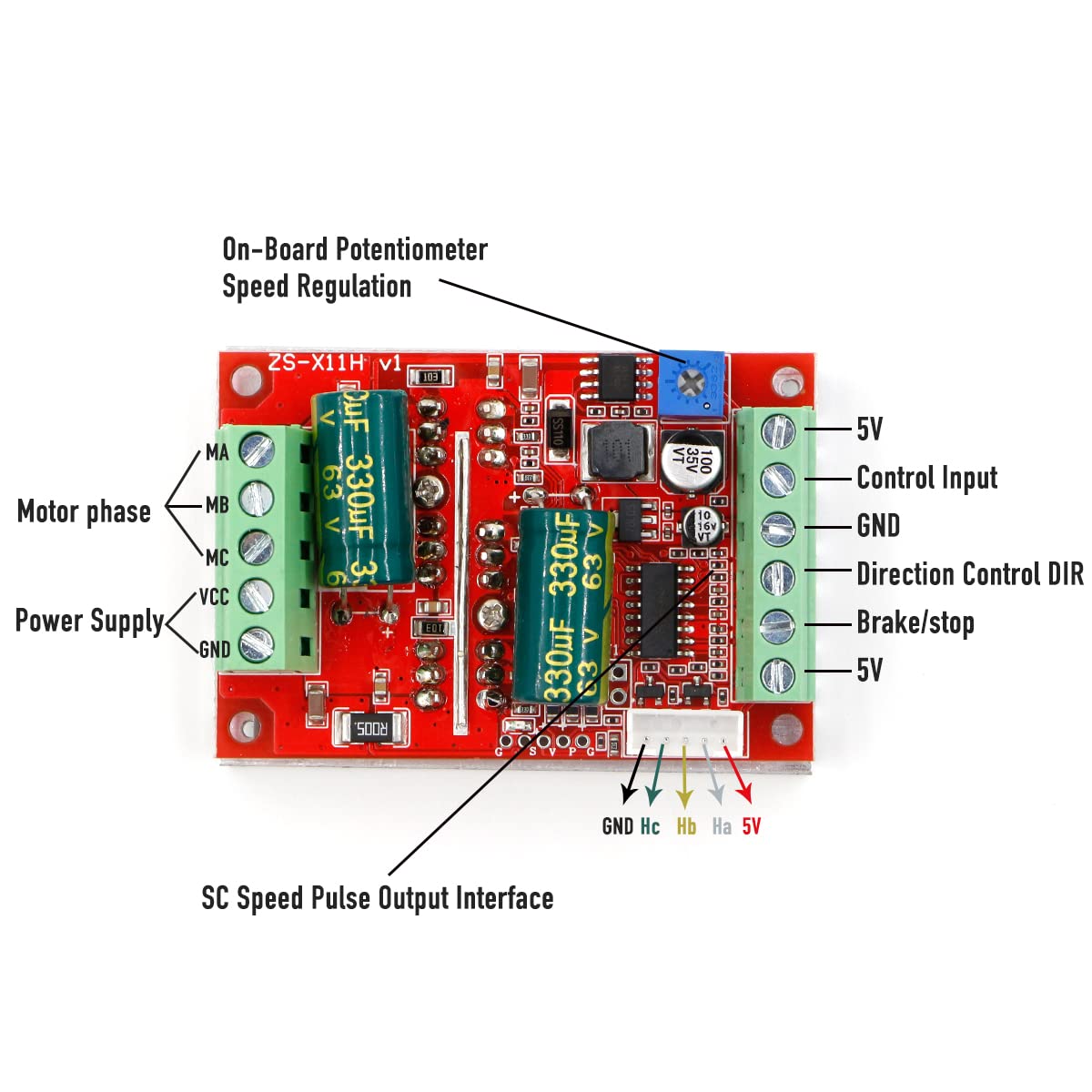

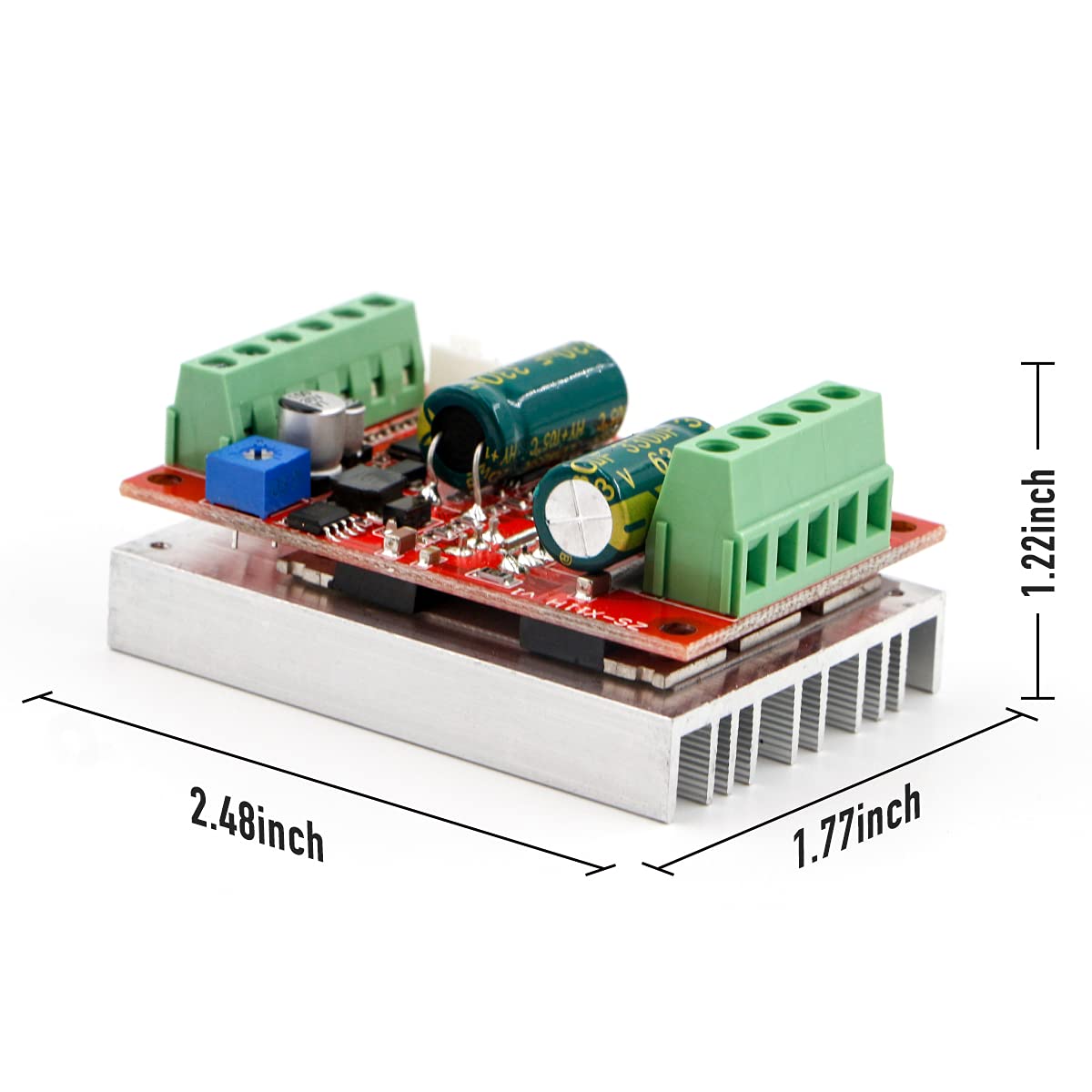

Main board specifications: Product name: High-power PLC 400W Brushless DC Motor Driver with Hall Working voltage: 6-60V Maximum current: rated 16A peak 20A Maximum power: 400W Overcurrent protection: Yes Interface Description: 1.MA MB MC phase line output connected to the motor 2.5V GND The motherboard comes with 5V power supply (available external power supply current does not exceed 50MA) 3.VCC GND main power supply (external DC power supply) 4.SC speed pulse signal output (only leave the interface, no technical support) 5.Direction control Forward and reverse control interface (high level effective, external switch can be connected) 6.Speed control speed control signal input (integrated potentiometer for speed control on the board can also be connected to 0-5V analog quantity to support PWM to 0-5 signal input speed control) 7.Ha Hb Hc 5V GND Hall signal Power input interface, generally motors with Hall have corresponding 5 wires Note 1,Debugging instructions: After receiving the driver board, first understand whether the interface can correspond to the interface of your brushless motor. 2,There is no fuse on the power supply circuit on the motherboard, and Jianyi has its own. If the positive and negative poles of the power supply are reversed, some chips on the board will be permanently damaged (not even 2 seconds). 3.Do not connect the motor that is obviously inconsistent with the voltage, current and power of the drive module or far away from each other, to avoid inexplicable "no point" damage.
-New upgrade BLDC wide voltage 6-60V high power 350W, DC three-phase brushless with Hall controller, support PLC 0-5V touch volume control, support PWM control amplitude 2.5-5V.
-The main board power supply circuit without fuse, can be added(by yourself), the power supply positive and negative terminals will cause permanent damage to some of the chips on the board (not even for a few seconds when the high current)
-Motor output for sampling overcurrent protection, due to the module power supply current are very large. Do not artificially cause a short circuit in the normal operation of the module, a short circuit will damage the tube. Wiring test machine for small-current low-voltage test, successful then through the high-current high-voltage . Bare board module, pay attention to wire insulation when wiring, forbid strong voltage to touch the board.
-Do not connect the obvious and drive module voltage, current, power phase does not match or far from the motor to avoid inexplicable "nonsense" damage.
Main board specifications: Product name: High-power PLC 400W Brushless DC Motor Driver with Hall Working voltage: 6-60V Maximum current: rated 16A peak 20A Maximum power: 400W Overcurrent protection: Yes Interface Description: 1.MA MB MC phase line output connected to the motor 2.5V GND The motherboard comes with 5V power supply (available external power supply current does not exceed 50MA) 3.VCC GND main power supply (external DC power supply) 4.SC speed pulse signal output (only leave the interface, no technical support) 5.Direction control Forward and reverse control interface (high level effective, external switch can be connected) 6.Speed control speed control signal input (integrated potentiometer for speed control on the board can also be connected to 0-5V analog quantity to support PWM to 0-5 signal input speed control) 7.Ha Hb Hc 5V GND Hall signal Power input interface, generally motors with Hall have corresponding 5 wires Note 1,Debugging instructions: After receiving the driver board, first understand whether the interface can correspond to the interface of your brushless motor. 2,There is no fuse on the power supply circuit on the motherboard, and Jianyi has its own. If the positive and negative poles of the power supply are reversed, some chips on the board will be permanently damaged (not even 2 seconds). 3.Do not connect the motor that is obviously inconsistent with the voltage, current and power of the drive module or far away from each other, to avoid inexplicable "no point" damage.
