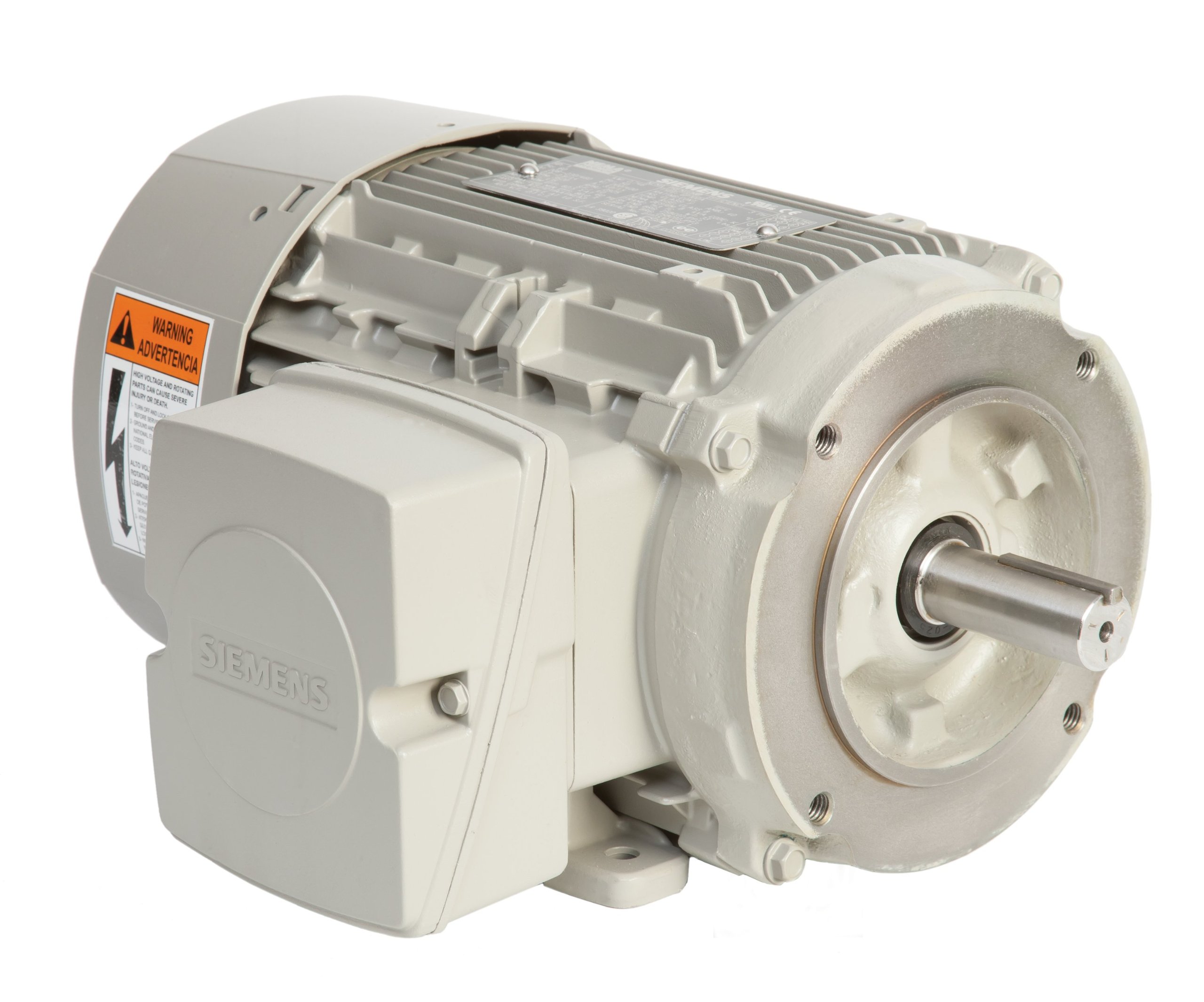

Siemens 1LE21211CB114EA3 3-HP 1800 Rpm 208 230/460-volt 182tc Motor eléctrico de uso general Nema Premium Marco de aluminio eficiente, rotor de aluminio
- Marca: Siemens
- Código de Producto: B00A8FRAFU
-3 HP, 1800 RPM
-182TC Frame
-208-230/460 Volt

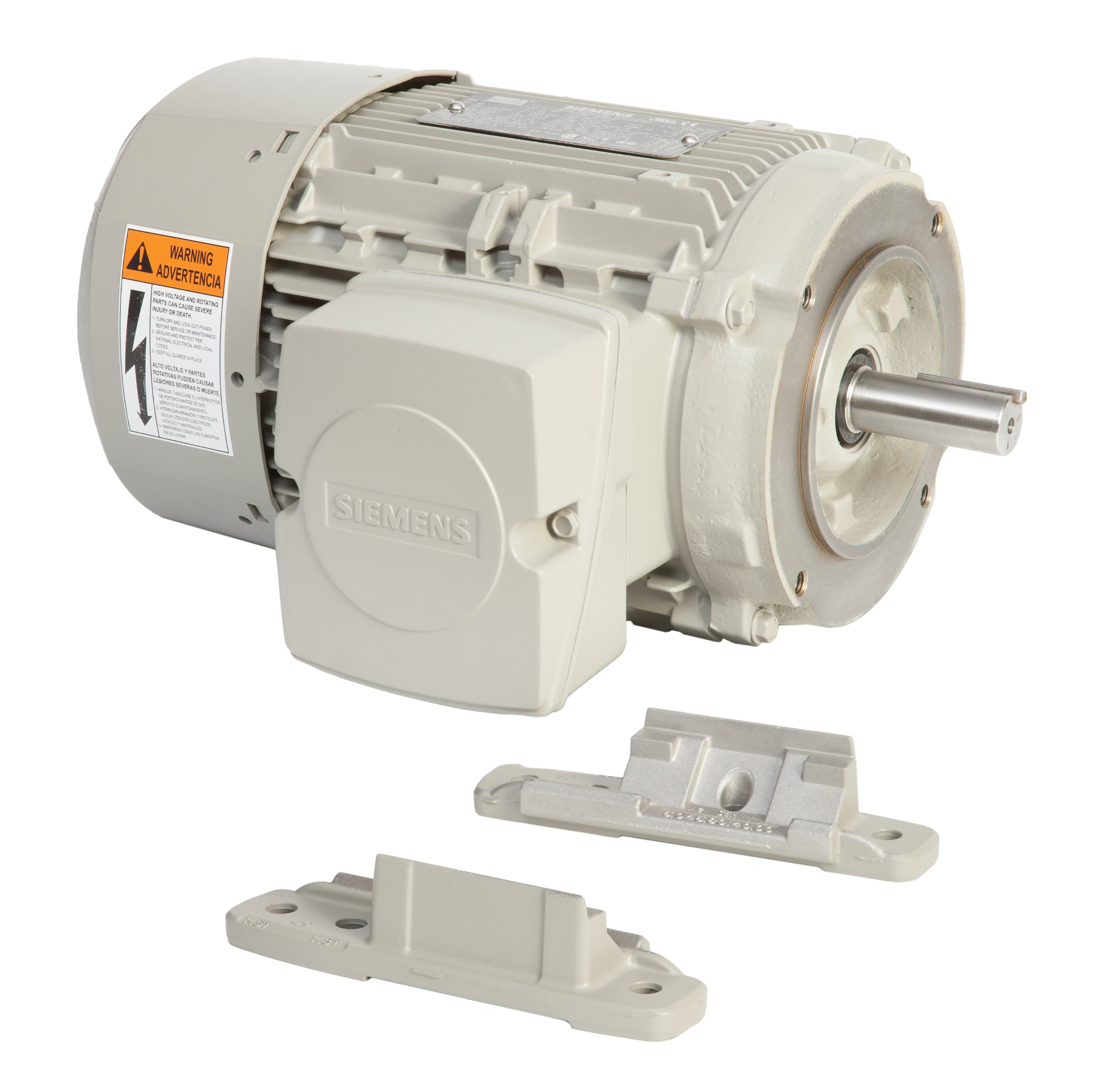

-Removable feet allow for F1, F2, F3 terminal box position
-Inverter Duty Rating Variable Torque 20:1 Constant Torque 4:1
The line of Siemens aluminum frame motors is an evolution in motor design. Specially designed bolt-on mounting feet permit F1, F2 and F3 mounting flexibility without the need to disassemble the motor. The cast aluminum frame weighs less than comparable rolled-steel frame motor designs, yet provide more structural strength for a wider variety of industrial applications. Siemens aluminum frame motors feature a proprietary, inverter-rated, Class F insulation system with a Class B temperature rise at 1.0 service factor. This insulation system meets or exceeds NEMA MG1, Part 30 and 31 for adjustable sped drive operation.
-182TC Frame
-208-230/460 Volt
-Removable feet allow for F1, F2, F3 terminal box position
-Inverter Duty Rating Variable Torque 20:1 Constant Torque 4:1
The line of Siemens aluminum frame motors is an evolution in motor design. Specially designed bolt-on mounting feet permit F1, F2 and F3 mounting flexibility without the need to disassemble the motor. The cast aluminum frame weighs less than comparable rolled-steel frame motor designs, yet provide more structural strength for a wider variety of industrial applications. Siemens aluminum frame motors feature a proprietary, inverter-rated, Class F insulation system with a Class B temperature rise at 1.0 service factor. This insulation system meets or exceeds NEMA MG1, Part 30 and 31 for adjustable sped drive operation.
