Testo 550S AC Manifold Gauge Conjunto de calibres múltiples HVAC y refrigeración - incl. Termómetro de abrazadera de tubería 2x testo 115i, 1x testo 552i medidor de micras y un conjunto de 3 mangueras, con Bluetooth
- Marca: Testors
- Código de Producto: B08TZ2W542
-VERSATILE; The manifold gauge set offers extremely precise readings of temperature and pressure on air conditioning systems, refrigeration, as well as heat pumps
-WIDE RANGE; Take advantage of the wide temperature measuring range of -58° to 302 °F / -50 to +150 °C and pressure measuring range of -15 to 870 psi / -1 to 60 bar with testos ac manifold
-PRECISE; The AC gauge set provides reliable data with a temperature accuracy +-0.9 °F / +-0.5 °Cand pressure measurement accuracy of +-0.5 % of full-scale value
-PROBES; Obtain accurate measurements of temperature, pressure, or vacuum with the hvac manifold gauge set. The kit includes 2 wireless temperature probes, 1 wireless vacuum probe, and a set of hoses, making system analysis and optimization quick and easy
-FEATURES; The testo gauges hvac supports most common refrigerant types, as well as A3 refrigerants. Combined with the testo smart app, the gauge produces automatic calculations of superheat and subcooling

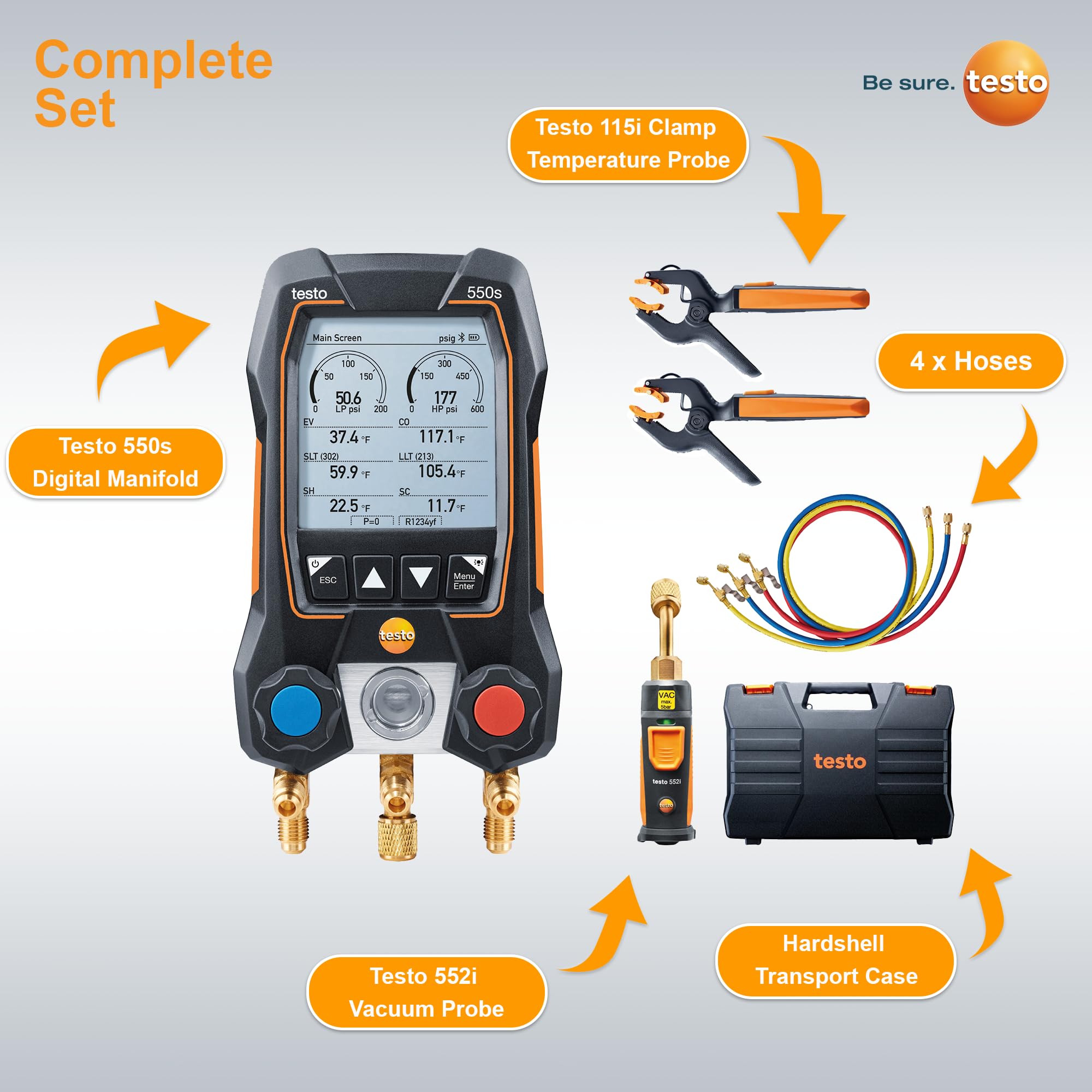

testo 550s Set (includes 2x 115i and 1x 552i + 3 hoses) – Remote and accurate measurements of pressure, vacuum and pipe temperature Installation and maintenance of air conditioning, refrigeration systems and heat pumps has never been more convenient thanks to the testo 550s vacuum kit. It is the ideal set of products for highly reliable and flexible measurement and documentation. Thanks to its smart Bluetooth integration, data can be stored and evaluated reliably and efficiently from afar, thus saving precious time and resources. Technical Data: Testo 550s: Temperature measuring range: -58° to +302°F / - 50° to +150°C Temperature measurement accuracy: +-0.9 °F / +-0.5 °C Pressure measuring range: -15 to 870 psi / -1 to 60 bar Pressure measurement accuracy: +-0.5 % of full-scale value Pressure overload relay: 943 psi / 65 bar Vacuum measuring range: -15 to 0 psi / -1 to 0 bar Probe connection type: 2 x plug-in (NTC) testo 115i: Measuring range: -58° to 302 °F / -50 to +150 °C Accuracy: +-2.3 °F (-4 to 185 °F) Battery life: 150 hours Battery type: 3 x AAA Weight: 4.49 oz. / 127.4 g Dimensions: 7 x 4 x 1 in. / 183 x 90 x 30 mm testo 552i: Measuring range: 0 to 0.39 psi; 0 to 26.66 mbar; 0 to 20000 micron Accuracy: +-(10 micron + 10 % of mv) (100 to 1000 micron) Protection class: IP42 Resolution: 1 micron (0 to 1000 micron); 10 micron (1000 to 2000 micron); 100 micron (2000 to 5000 micron) Battery life: 50 hours Battery type: 2 x AA Measuring range: 0.5 sec Weight: 18 oz. / 500 g Dimensions: 6 x 4 x 2 in. / 160 x 110 x 50 mm System Requirements: requires iOS 11 or higher; requires Android 6 or higher; requires mobile end device with Bluetooth 4.0 Scope of delivery: 1 x testo 550s including batteries, 2 x testo 115i pipe clamp thermometer, 1 x testo 552i micron gauge, 1 x Protective case, 3 x Hoses, Banderole, instruction manuals and calibration protocols
