Módem USB Hart Transmisor Hart Comunicador Hart con entrada integrada de 24 V CC Hart Communicator 475 375
- Marca: Original S.W.A.T.
- Código de Producto: B01DX3J2Z4

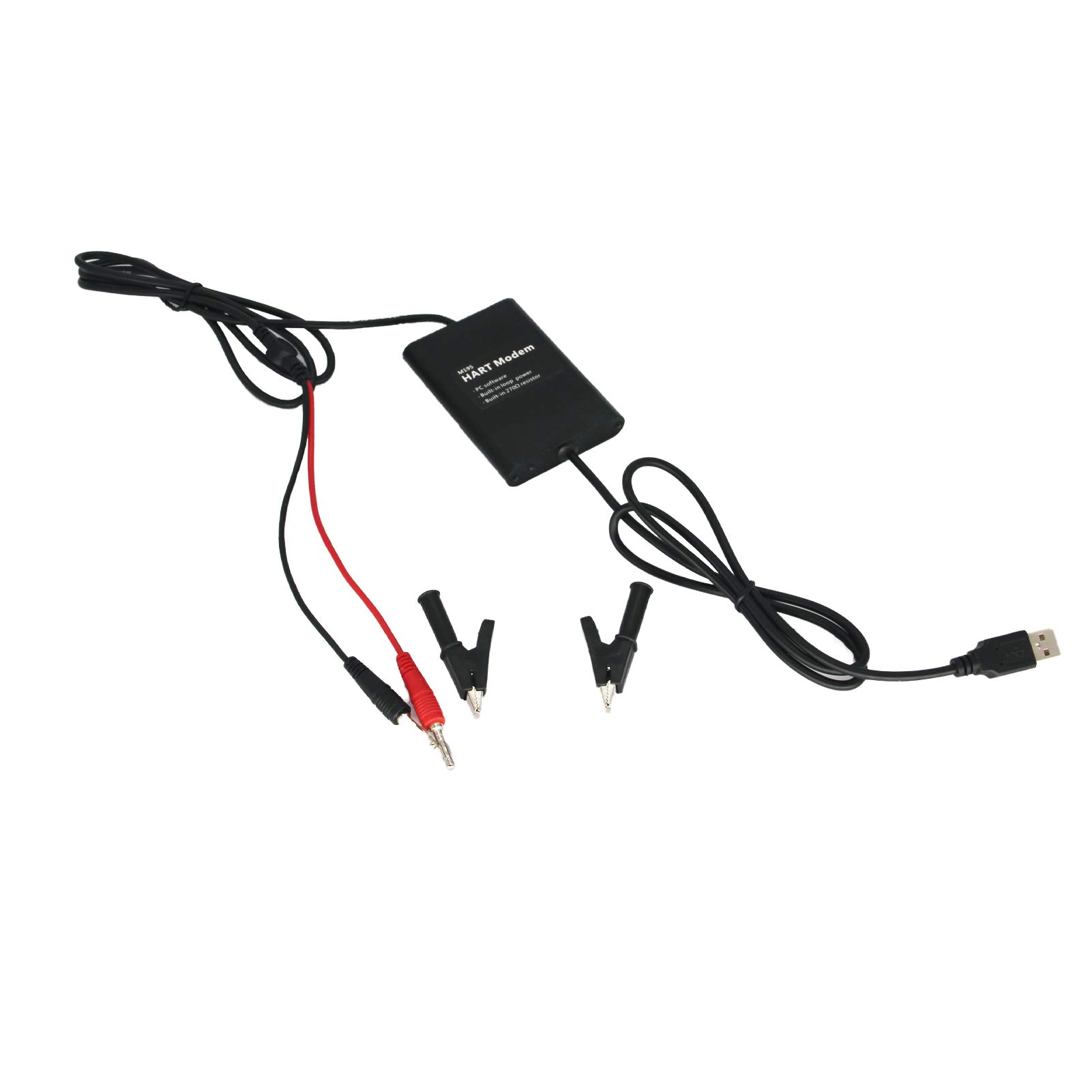

-The M195 HART Modem is a smart device configuration / debug tools, can be used for the production of intelligent. HART configuration,commissioning and on-site management, maintenance and so on, use HART configuration / debug tools in the production process to configuration, debugging,calibration, diagnostics the HART Intelligence equipment, can also be used for management, configuration running. HART smart field devices and monitoring process variables

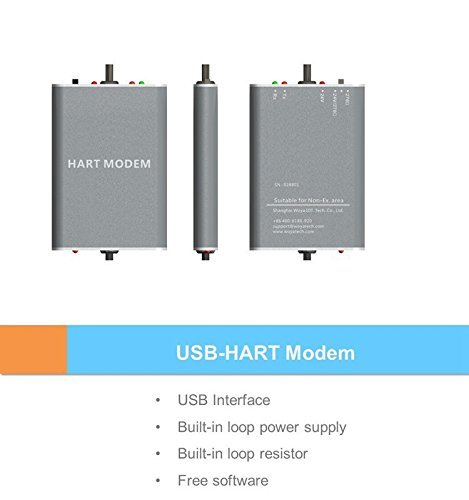

-Structure design Solid metal shell. The wire, alligator clips and hart hooks are high strength.
-Software Provide free software. Operating system: Win95/98/ME/2000/XP/WIN7/WIN8/WIN10

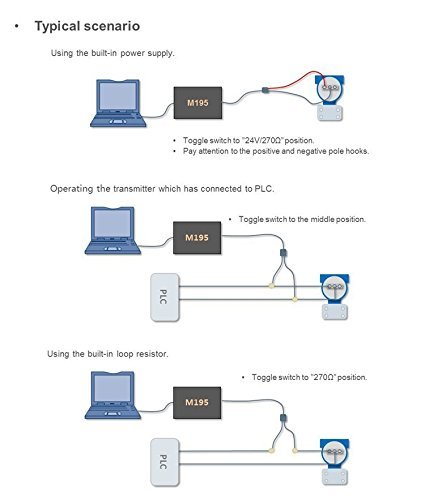

-Built-in loop power supply The built-in loop power supply can power the transmitter, the HART line and the power supply line are combined.
-Built-in loop resistor The built-in loop resistor is useful when the loop resistance is less than 250 ohm. Galvanic isolation 1500 VDC isolation

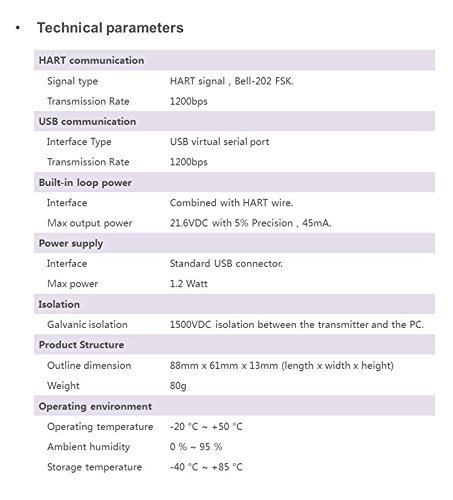

HART communication Signal type HART signal, Bell-202 FSK. Transmission Rate 1200bps USB communication Interface Type USB virtual serial port Transmission Rate 1200bps Built-in loop power Interface Combined with HART wire. Max output power 21.6VDC with 5% Precision, 45mA. Power supply Interface Standard USB connector. Max power 1.2 Watt Isolation Galvanic isolation 1500VDC isolation between the transmitter and the PC. Product Structure Outline dimension 88mm x 61mm x 13mm (length x width x height) Weight 80g Operating environment Operating temperature -20 °C ~ +50 °C Ambient humidity 0 % ~ 95 % Storage temperature -40 °C ~ +85 °C Include: modem x 1 packet x1 disk x 1 alligator clip x 2 hart hook x 2 manual x 1
-Structure design Solid metal shell. The wire, alligator clips and hart hooks are high strength.
-Software Provide free software. Operating system: Win95/98/ME/2000/XP/WIN7/WIN8/WIN10
-Built-in loop power supply The built-in loop power supply can power the transmitter, the HART line and the power supply line are combined.
-Built-in loop resistor The built-in loop resistor is useful when the loop resistance is less than 250 ohm. Galvanic isolation 1500 VDC isolation
HART communication Signal type HART signal, Bell-202 FSK. Transmission Rate 1200bps USB communication Interface Type USB virtual serial port Transmission Rate 1200bps Built-in loop power Interface Combined with HART wire. Max output power 21.6VDC with 5% Precision, 45mA. Power supply Interface Standard USB connector. Max power 1.2 Watt Isolation Galvanic isolation 1500VDC isolation between the transmitter and the PC. Product Structure Outline dimension 88mm x 61mm x 13mm (length x width x height) Weight 80g Operating environment Operating temperature -20 °C ~ +50 °C Ambient humidity 0 % ~ 95 % Storage temperature -40 °C ~ +85 °C Include: modem x 1 packet x1 disk x 1 alligator clip x 2 hart hook x 2 manual x 1
